Description

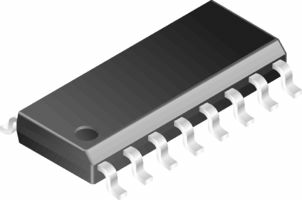

MAX1406EWE Maxim Integrated RS-232 Interface IC 15kV ESD-Protected 230kbps RS-232 LD/Rc SMT / SMD SOIC-16
The MAX1406 is an RS-232 IC designed to meet the stringent electrostatic discharge (ESD) requirements of the European community. All transmitter outputs and receiver inputs are protected to ±15kV using IEC1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.
The MAX1406 has three RS-232 transmitters and three RS-232 receivers, and is optimized for operation in printer, modem, and telecom applications. It is guaran- teed to run at data rates up to 230kbps, providing com- patibility with popular software for communicating with personal computers. Power-supply current is less than 500μA for I DD and I SS, and less than 1mA for I CC.
The MAX1406 is pin and functionally compatible with the industry-standard MC145406, so existing designs can instantly become Electromagnetic Compatibility (EMC) compliant. The MAX1406 is available in DIP and SO pack- ages, and in a tiny SSOP that reduces board space.
Manufacturer:Maxim
Datasheet:MAX1406.pdf
