Description

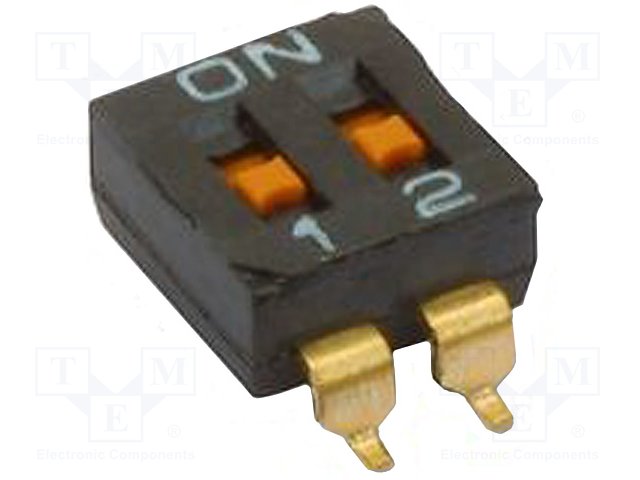

Multicomp MCDHN-02F-T-V DIP / SIP Switch, Flush Slide, 2 Circuits, SPST, SMD, MCDHN Series, DIP Sealed, 24 VDC
The Multicomp MCDHN series are DIP switches. These DIP switches are half pitch, top tape sealed.
Switching capacity of 25mA at 24VDC
SPST contact configuration
2, 4, 6, 8 and 10 positions available
Operating force of 500gf
Slide actuator style
Multicomp products are rated 4.6 out of 5 stars
12-month limited warranty *view Terms & Conditions for details
96% of customers would recommend to a friend
Applications
Industrial, Power Management, Automation & Process Control
SPECIFICATION
Manufacturer MULTICOMP
Type of switch DIP-SWITCH
Poles number 2
Switching method
(item in brackets is instantaneous) ON-OFF
DC contacts rating @R (at resistance load) 0.1A / 50VDC
Number of all positions 2
Stable positions number 2-position
Terminal pitch 1.27mm
Operating temperature -40 To 85C
Overall length 1.5mm
Row pitch 6.15mm
Mounting SMT
Switches features flat actuator
Min. insulation resistance 100Mohm
Contact plating gold plated
Mechanical durability 1000cycles
Contact material copper alloy
Flammability rating UL94V-0
Body material thermoplastic
Manufacturer:Multicomp
Datasheet:Others/MCDHN.pdf
