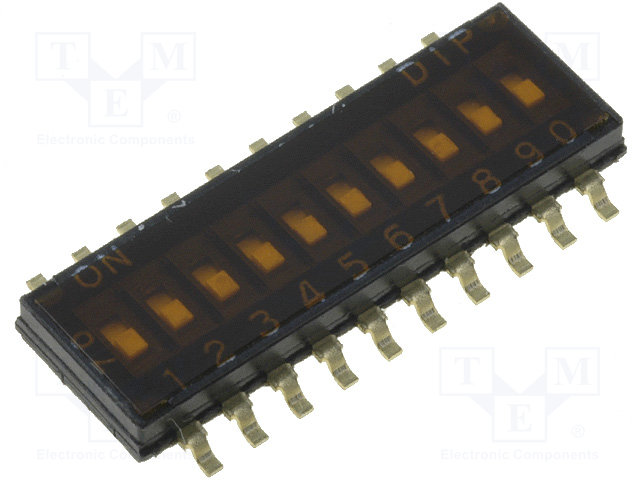

MCDHN-10F-T-V Multicomp Switch: DIP-Switch; Poles number:10; ON-OFF; 0.1A/50VDC; -40C to 85C ROHS
The MCDHN-10F-T-V from Multicomp is a half pitch, top tape sealed 10-way DIP switch. This switch has black high temperature thermoplastic nylon base/cover and white high temperature thermoplastic LCP actuator.
Switching capacity is 25mA at 24VDC
SPST contact configuration
Operating force is 500gf
Operating temperature range from -40C to +85C
Maximum contact resistance is 100mohm at initial
Minimum insulation resistance is 100Mohm at 500VDC
1,000 cycles mechanical life and 1,000 cycles electrical life
Gold plated copper alloy contacts and gold plated brass terminals
Applications
Industrial, Power Management, Automation & Process Control
SPECIFICATION
Manufacturer MULTICOMP
Type of switch DIP-SWITCH
Poles number 10
Switching method
(item in brackets is instantaneous) ON-OFF
DC contacts rating @R
(at resistance load) 0.1A / 50VDC
Number of all positions 2
Stable positions number 2-position
Terminal pitch 1.27mm
Operating temperature -40…85C
Overall length 13.93mm
Row pitch 6.15mm
Mounting SMT
Switches features flat actuator
Min. insulation resistance 100MO
Contact plating gold plated
Mechanical durability 1000cycles
Contact material copper alloy
Flammability rating UL94V-0
Body material thermoplastic
