Description

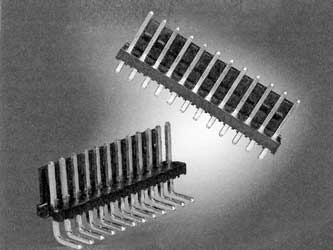

MFSS156-4-D ITW Pancon Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole
Product Family Pancon Connectors
^Product Name MAS-CON .156″ IDC Wire to Board Connector System
^Brand Name Flat Headers – Straight
^Rohs Status COMPLIANT
^Comp Type Header
^Term Method Solder
^Contact Material Copper Alloy
^Contact Plating Bright Tin over Nickel
^Housing Material Thermoplastic
^Dielectric Voltage 3.0 KVAC Min.
^Flammability UL 94 V-0
^Insulation Resistance 5,000 Megohms Min
^Packaging Type Bag
^Standard Pack Size 500
^Product Specification PS 1004
^Sales Drawing KA-10043.pdf
^Stackable YES
^Polarized To Mating Part NO
^Lock To Mating Part NO
^Polarization NO
^Breakaway YES
^Current Max Per Contact 12.5 amps
^Voltage Max 300 volts
^Num Rows 1
^Pitch Mating .156″
^Pc Tail Length .180″
^Spacing .156″
^Gender Male
Manufacturer:ITW
Datasheet:mascon_headers.pdf
