Description

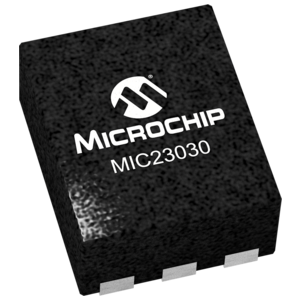

Microchip Technology Inc MIC23030-CYMT-TR Voltage Regulators – Switching Regulators 8MHz 400mA Hyper Light Load, Buck Regulator, 6 UDFN 1.6×1.6×0.6mm T/R RoHS
The MIC23030-CYMT TR is a high efficiency 8 MHz 400 mA synchronous buck regulator with HyperLight Load® mode.
HyperLight Load® provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages.
Features:
Input voltage: 2.7V to 5.5V
400mA output current
Up to 91% efficiency and 83% at 1mA
21 µA typical quiescent current
8MHz PWM operation in continuous mode
Ultra fast transient response
Low voltage output ripple
14mVpp ripple in HyperLight Load® mode
5mV output voltage ripple in full PWM mode
Fully integrated MOSFET switches
0.01 µA shutdown current
Thermal shutdown and current limit protection
Fixed and adjustable output voltage options available
6-pin 1.6mm x 1.6mm Thin MLF®
-40 °C to +125 °C junction temperature range
Applications:
Mobile handsets
Portable media/MP3 players
Portable navigation devices (GPS)
WiFi/WiMax/WiBro modules
Digital cameras
Wireless LAN cards
USB powered devices
Portable applications
Manufacturer Part Number: MIC23030-CYMT-TR
Manufacturer: Microchip Technology
