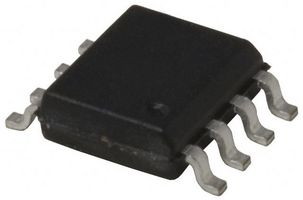

MIC2505-1YM TR Microchip IC, HIGH SIDE POWER SWITCH, 7.5V, 8-SOIC, Power Load Switch Type:High Side, Input Voltage:7.5V, Current Limit:4A, On State Resistance:0.03ohm, Distribution Switch Case Style:SOIC, No. of Pins:8, Thermal Protection:Yes, Packaging:Each, RoHS
Specifications
Product Category: Power Switch ICs – Power Distribution
Manufacturer: Microchip
RoHS: RoHS Compliant
Type: High Side
Number of Outputs: 1 Output
Current Limit: 4 A
Operating Supply Voltage: 2.7 V to 7.5 V
Supply Voltage – Min: 2.7 V
Supply Voltage – Max: 7.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Package / Case: SOIC-8
Packaging: Reel
Brand: Microchip Technology / Micrel
Product: USB Power Switches
Factory Pack Quantity: 2500
Part # Aliases: MIC2505-1YM TR
Unit Weight: 0.019048 oz
The MIC2505-1YM is a single integrated high-side Power Switch that consists of TTL compatible control/enable inputs, a charge pump and protected N-channel MOSFETs. The MIC2505 family can be used instead of separate high-side drivers and MOSFETs in many low-voltage applications. The MIC2505 family controls voltages ranging from 2.7 to 7.5V. A slow turn-on feature prevents high inrush current when switching capacitive loads. Within the devices input range, outputs can be forced higher than the input voltage when disabled. Multipurpose open-drain fault flag outputs indicate overcurrent limiting, open-load detection (except MIC2505-1 and -2 versions), thermal shutdown or undervoltage lockout for each channel. Overcurrent limiting is internally fixed and requires no external components. Open-load detection is active when the switch is off. When off, a normal load pulls the output pin low.
Manufacturer Part Number: MIC2505-1YM-TR
Manufacturer: Microchip Technology
