Description

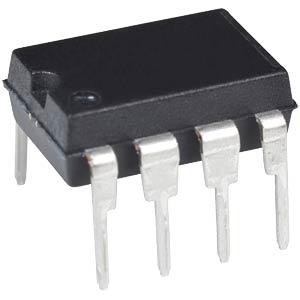

Microchip 24LC02B-I/P EEPROM Memory 2k bit (256 x 8) 900nS PDIP-8 Through Hole
The Microchip Technology Inc. 24AA02/24LC02B is a 2Kb I2C™ compatible Serial EEPROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2×3 DFN and MSOP packages and is also available in the 5-lead SOT-23 package.
Features
- Single supply with operation down to 2.5V for 24LC02B devices
- Low-power CMOS technology
- 2-wire serial interface, I2C™ compatible
- Schmitt Trigger inputs for noise suppression
- Output slope control to eliminate ground bounce
- 100 kHz and 400 kHz clock compatibility
- Page write time 3 ms, typical
- More than 1 million erase/write cycles
- Data retention >200 years
The Microchip Technology Inc. 24AA02/24LC02B (24XX02*) is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μ A and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2×3 DFN, 2×3 TDFN and MSOP packages and is also avail- able in the 5-lead SOT-23 and SC-70 packages.
Manufacturer:Electronic Components
Datasheet:21709J.pdf
