Microsemi 1N6461JANTX MIL Spec Diode TVS 5.6V Axial

Microsemi 1N6461JANTX MIL Spec Transient Voltage Supressor Diode 5.6V 500W

SKU: 1N6461JANTX Category: Tags: , , Brand:

Description

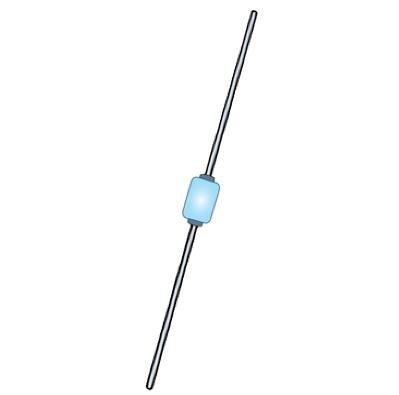

Microsemi 1N6461JANTX MIL Spec Transient Voltage Supressor Diode (TVS) 5.6V 500W Axial Through Hole

This series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors (TVS) are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak “Standoff” voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in a surface mount MELF package configuration.

lectrical Rating   Symbol   Min   Typ   Max   Unit
 Clamping Voltage (V)  VC      9.00  V
 Forward Clamping Voltage (V)  VCF      -3.50  V
 Reverse Breakdown Voltage (V)  V(BR)  5.60      V
 Reverse Leakage Current (uA)  ID      3000.00  µA
 Temperature Coefficient of Breakdown Voltage(mV/C)  αV(BR)      0.04  mV/°C
 Temperature Coefficient of Breakdown Voltage(mV/C)  αV(BR)      -0.03  mV/°C
  Maximum Electrical Rating   Symbol   Min   Typ   Max   Unit
 Peak Pulse Power (W)  PPP      500.00  W
 Rated Working Standoff Voltage (V)  VWM      5.00  V

Manufacturer Part Number: 1N6461JANTX
Microsemi
