Description

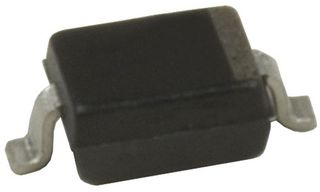

Diode Zener Single 6.8V 2% 200mW 2-Pin SOD-323F T/R
Key Features
VZ Tolerance Selection of 2% (B Series)
Very Small and Thin SMD package
Matte Tin(Sn) finish, Pb Free
Zener Voltage of 6.8V
Technical Attributes
Description Value Find similar Parts
Configuration Single
Mounting Surface Mount
Max Processing Temp 260
Lead Finish Matte Tin
Pin Count 2
Product Dimensions 1.7 x 1.3 x 1 mm
Test Current 5 mA
Maximum Reverse Leakage Current 1.8 uA
Operating Temperature -65 to 150 C
ESD Protection No
Zener Voltage Tolerance 2 %
Maximum Zener Impedance 14 Ohm
Maximum Power Dissipation 200 mW
MSL Level 1
Supplier Package SOD-323F
Nominal Zener Voltage 6.8 V
Manufacturer:Diotec
Datasheet:mm3z2b4.pdf
