Description

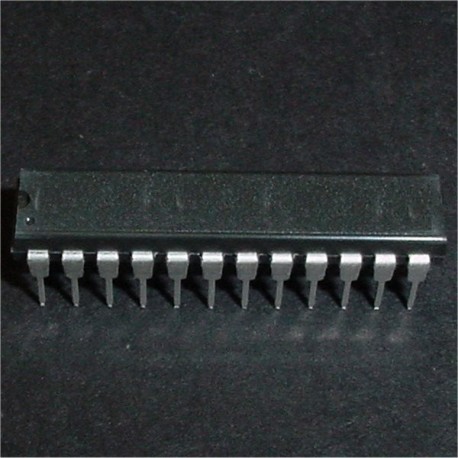

TI – MMI PAL20R8ACNS 24-pin TTL Programmable Array Logic
SPECIFICATIONS
Part #: PAL20R8ACNS
Part Category: Programmable Logic ICs
Description: OT PLD, 20ns, PDIP24
Mfr Package Description 0.300 INCH, SKINNY, PLASTIC, DIP-24
Status Discontinued
Programmable Logic Type OT PLD
Architecture PAL-TYPE
Clock Frequency-Max 25 MHz
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Number of Dedicated Inputs 12
Number of I/O Lines 0.0
Number of Inputs 12
Manufacturer:Texas Instruments
Datasheet:AMDID057-2-128.pdf
