Description

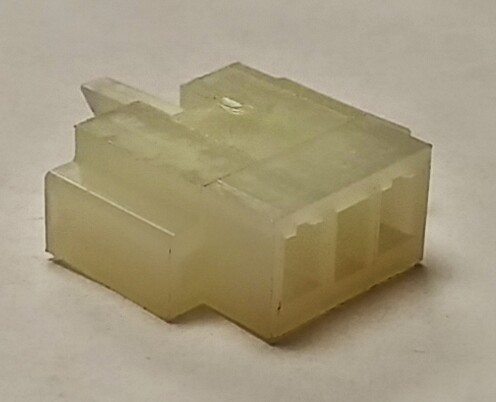

Molex 09-01-1038 Connector 3.96mm (.156″) Pitch Crimp Housing Edge Card, Single-Sided Polarized Positive Lock 3 Circuits RoHS
Use With: 2878 Terminals, 2478 Terminals, 2578 Terminals, Bifurcated
Part Detail
Status Obsolete
Category Edge Card Connectors
Series 6422
Comments Wire to Card Edge
Component Type Edgecard to Wire
High Power Bay (30.0A or more) No
Overview Edge Card Connectors
Product Name Edge Card, KK®
UPC 800754228725
Physical
(p)ower-(s)ignal Configuration 2s – 0p
Circuits (Loaded) 2
Circuits (maximum) 3
Color – Resin Natural
Durability (mating cycles max) 25
Entry Angle Vertical (Top Entry)
Flammability 94V-2
Keying to Mating Part Yes
Material – Plating Mating N/A
Net Weight 1.402/g
PCB Retention None
Packaging Type Bag
Pitch – Mating Interface 3.96mm
Polarized to Mating Part Yes
Temperature Range – Operating 0°C to +75°C
Termination Interface: Style N/A
Electrical (Please review the Product Specification for specific details.)
Current – Maximum per Contact 4.25A, 4.5A, 4.75A, 4.0A, 5.0A
Voltage – Maximum 250V
Manufacturer:Molex
Datasheet:Molex/0009011038_EDGE_CARD_CONNECTO.pdf
