Description

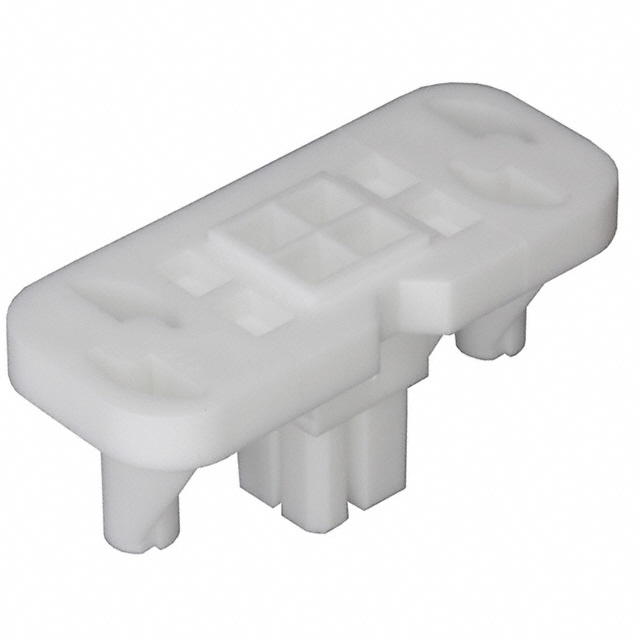

15-06-0040 Molex Mini-Fit® BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits
Receptacle and Plug Housings, 42474 and 42475 Series
Blind Mating Interface panel mount housings
Receptacle housings 42474 Series mate with Plug housings 42475 Series
Receptacle housings 42474 Series also mate with Crimp Terminal Receptacles 5557 Series typical stock numbers 484-1748
Receptacle housings use 5556 Series terminals typical stock number 215-5887
Plug housings use 5558 Series terminals typical stock number 215-5893
Specifications
Family 42474
Type Housing
Gender RCP
Number of Contacts 4
Number of Rows 2
Housing Color Natural
Housing Material Nylon 6/6
Body Orientation Straight
Maximum Current Rating 12A/Contact
Maximum Voltage Rating 600VDC|600VAC
Minimum Operating Temperature -40°C
Maximum Operating Temperature 105°C
Packaging Bag
Pitch 4.2mm
Product Depth 19.6mm
Product Length 40.2mm
Product Type Connector Discrete Wire Housing
Product Height 17.3mm
Manufacturer:Molex
Datasheet:Molex/0015060040_CRIMP_HOUSINGS.pdf
