Description

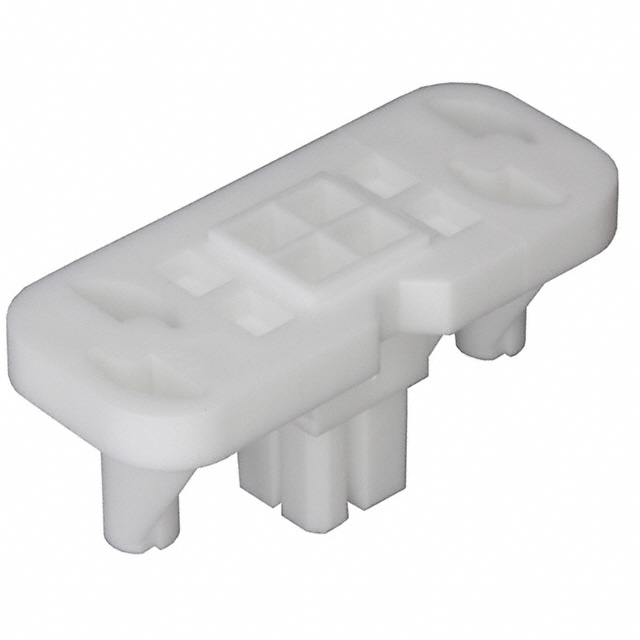

MOLEX 15-06-0041 Headers & Wire Housings Mini-Fit® BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 4 Circuits
Application Power, Wire-to-Board, Wire-to-Wire
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire.
See Molex product specification PS-45750-001 for additional current derating information.
Overview Mini-Fit® BMI
Product Name Mini-Fit® BMI
UPC 800754320757
Physical
Circuits (maximum) 4
Color – Resin Natural
Flammability 94V-0
Gender Male
Glow-Wire Compliant No
Lock to Mating Part None
Material – Resin Nylon
Net Weight 2.720/g
Number of Rows 2
Packaging Type Bag
Panel Mount Yes
Pitch – Mating Interface 4.20mm
Pitch – Termination Interface 4.20mm
Polarized to Mating Part Yes
Stackable No
Temperature Range – Operating -40°C to +105°C
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 13.0A
Manufacturer:Molex
Datasheet:1416.pdf
