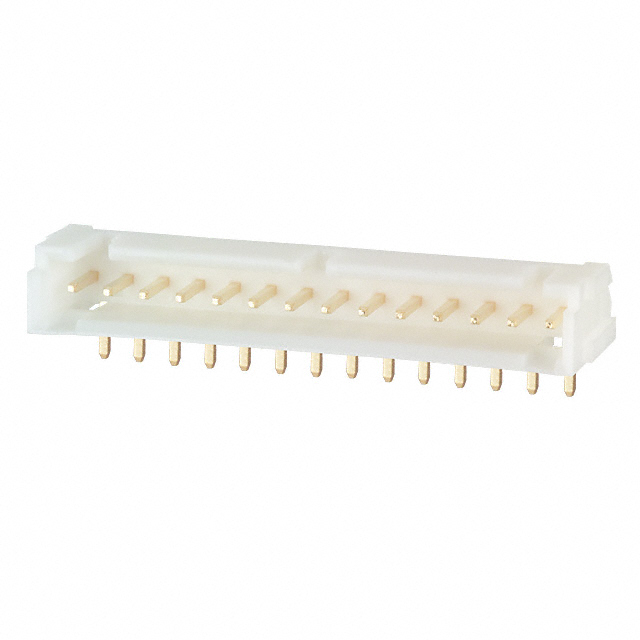

MOLEX 22-03-5145 Connector 2.50mm Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, 14 Circuits, Tin (Sn) Plating
Category PCB Headers
Series 5267
Application Signal, Wire-to-Board
Overview SPOX™ Wire-to-Board Connectors
Product Name SPOX™
UPC 800753740693
Physical
Breakaway No
Circuits (Loaded) 14
Circuits (maximum) 14
Color – Resin Natural
Durability (mating cycles max) 30
Flammability 94V-0
Glow-Wire Compliant No
Lock to Mating Part Yes
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin Nylon
Net Weight 1171.100/mg
Number of Rows 1
Orientation Vertical
PC Tail Length 3.50mm
PCB Locator No
PCB Retention Yes
PCB Thickness – Recommended 1.60mm
Packaging Type Bag
Pitch – Mating Interface 2.50mm
Plating min – Mating 4.064µm
Plating min – Termination 4.064µm
Polarized to Mating Part Yes
Polarized to PCB No
Shrouded Fully
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range – Operating -40°C to +105°C
Termination Interface: Style Through Hole
Electrical
Current – Maximum per Contact 3.0A
Voltage – Maximum 250V
Manufacturer Part Number: 22-03-5145
