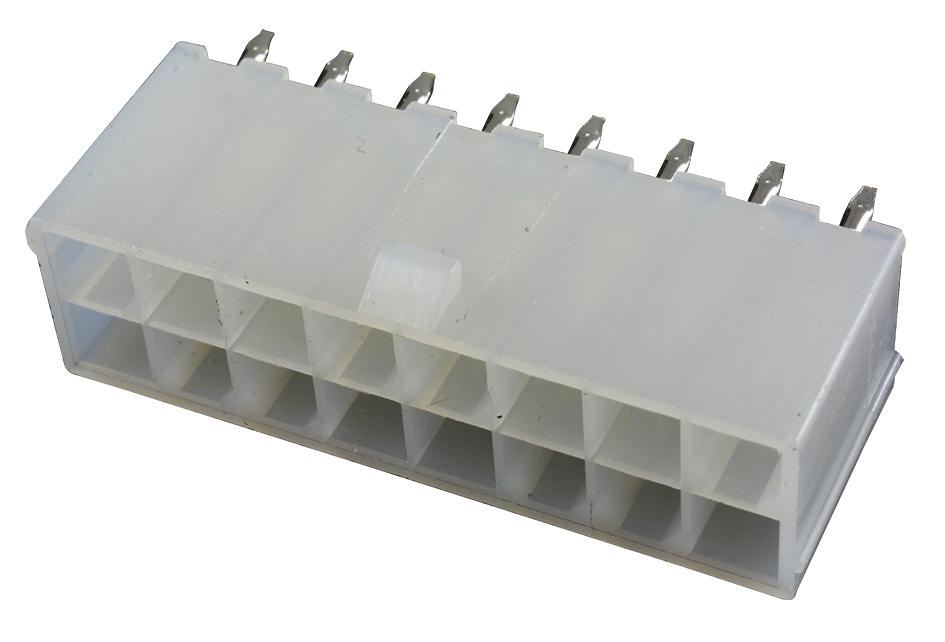

39-28-1163 Molex Pin Header, Power, Wire-to-Board Header,Wire to Board,PCB Plug,16 Cont,Thru-Hole,Mini-Fit Jr./5566 Series,2 Rows RoHS
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 16 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
Breakaway No
Circuits (Loaded) 16
Circuits (maximum) 16
Color – Resin Natural
Durability (mating cycles max) 30
First Mate / Last Break No
Flammability 94V-2
Glow-Wire Capable No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material – Metal Brass
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin Nylon
Net Weight 4.234/g
Number of Rows 2
Orientation Vertical
PC Tail Length 3.50mm
PCB Locator Yes
PCB Retention None
PCB Thickness – Recommended 1.60mm
Packaging Type Bag
Pitch – Mating Interface 4.20mm
Pitch – Termination Interface 4.20mm
Plating min – Mating 0.889µm
Plating min – Termination 0.889µm
Polarized to Mating Part Yes
Polarized to PCB Yes
Shrouded Fully
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range – Operating -40° to +105°C
Termination Interface: Style Through Hole
Manufacturer: Molex
MFG Part #: 39-28-1163
