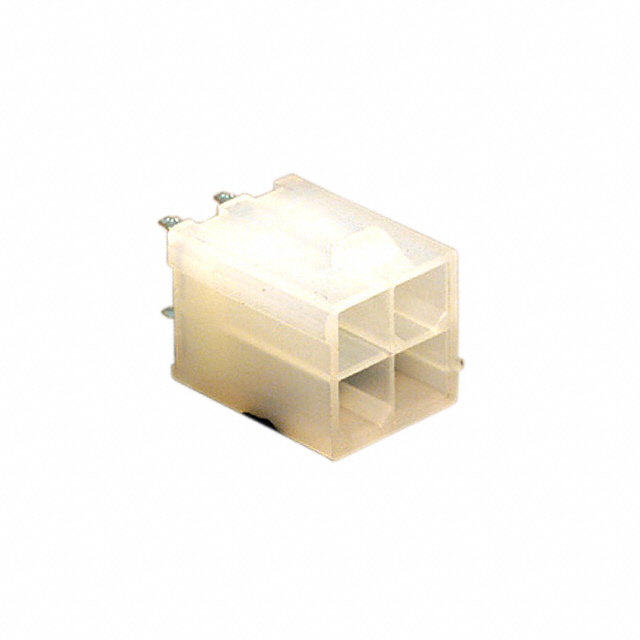

MOLEX 44472-0454 Connector Wire to Board Header 4 Position 4.2mm Solder Straight Thru-Hole Tray
CON Mini-Fit H CS Connectors HDR VERT DU AL 4P MINI-FIT HCS RoHS
Part DetailCollapse all
Category PCB Headers
Series 44472
Application Power, Wire-to-Board
Comments Square Pin, Solder Type
Overview Mini-Fit® Plus HCS
Product Name Mini-Fit® HCS
UPC 800754366946
Physical
Breakaway No
Circuits (Loaded) 4
Circuits (maximum) 4
Color – Resin Natural
Durability (mating cycles max) 30
Flammability 94V-2
Glow-Wire Compliant No
Material – Metal High Performance Alloy (HPA)
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin Nylon
Net Weight 1.261/g
Number of Rows 2
Orientation Vertical
PCB Locator Yes
PCB Retention None
PCB Thickness – Recommended 1.80mm
Packaging Type Tray
Pitch – Mating Interface 4.20mm
Plating min – Mating 2.540µm
Plating min – Termination 2.540µm
Polarized to PCB Yes
Shrouded Partial
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range – Operating -40°C to +105°C
Termination Interface: Style Through Hole
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 11.0A
Voltage – Maximum 600V
Manufacturer Part Number: 44472-0454
