Description

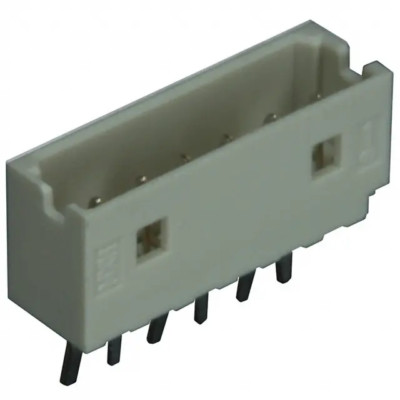

MOLEX 53014-0610 Wire-to-Board Connector and PCB Header 530140610 2.00mm Pitch MicroBlade™ Wire-to-Board Header, Vertical, 6 Circuits Through Hole
Category PCB Headers
Series 53014
Application Signal, Wire-to-Board
Overview MicroBlade™ Connection System
Product Name MicroBlade™
UPC 800753566255
Physical
Breakaway No
Circuits (Loaded) 6
Circuits (maximum) 6
Durability (mating cycles max) 30
First Mate / Last Break No
Flammability 94V-0
Glow-Wire Compliant No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material – Metal Phosphor Bronze
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin Nylon
Net Weight 398.000/mg
Number of Rows 1
Orientation Vertical
PC Tail Length 3.50mm
PCB Locator No
PCB Retention Yes
PCB Thickness – Recommended 1.60mm
Packaging Type Bag
Pitch – Mating Interface 2.00mm
Polarized to PCB No
Shrouded Fully
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range – Operating -20°C to +85°C
Termination Interface: Style Through Hole
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 2.0A
Voltage – Maximum 125V
Manufacturer Part Number: 530140610
Molex
