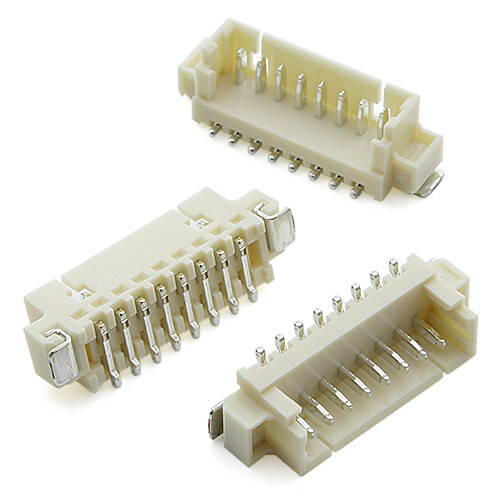

MOLEX 53398-0890 HDR 8 Positions Header Connector 0.049″ (1.25mm) Surface Mount Tin-LeadPart Detail
Status Obsolete
Category PCB Headers
Series 53398
Application Signal, Wire-to-Board
Current Derating Order No 987651-3691
Overview PicoBlade™ Connector System
Product Name PicoBlade™
UPC 800753563407
Physical
Breakaway No
Circuits (Loaded) 8
Circuits (maximum) 8
Color – Resin Natural
First Mate / Last Break No
Flammability 94V-0
Glow-Wire Compliant No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Mated Height 5.70mm
Material – Metal Phosphor Bronze
Material – Plating Mating Tin-Lead
Material – Plating Termination Tin-Lead
Material – Resin High Temperature Thermoplastic
Net Weight 259.400/mg
Number of Rows 1
Orientation Vertical
PCB Locator No
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch – Mating Interface 1.25mm
Plating min – Mating 3.048µm
Plating min – Termination 3.048µm
Polarized to PCB Yes
Shrouded Partial
Stackable No
Temperature Range – Operating -40°C to +85°C
Termination Interface: Style Surface Mount
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 1.0A
Voltage – Maximum 125V
Manufacturer Part Number: 53398-0890
