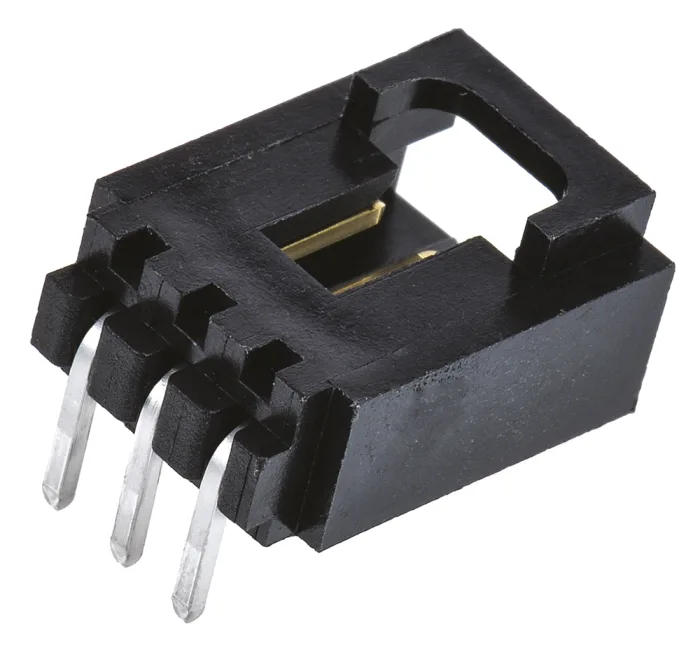

MOLEX 70553-0002 Wire-To-Board Connector, SL 70553 Series, Through Hole, Header, 3 Circuits 2.54 mm, Gold Plated Contacts
Category PCB Headers
Series 70553
Application Signal, Wire-to-Board
Overview SL™ Modular Connectors
Product Name SL™
UPC 800753686526
Physical
Breakaway No
Circuits (Loaded) 3
Circuits (maximum) 3
Color – Resin Black
Durability (mating cycles max) 50
Flammability 94V-0
Glow-Wire Compliant No
Guide to Mating Part Yes
Lock to Mating Part Yes
Material – Metal Brass, Phosphor Bronze
Material – Plating Mating Gold
Material – Plating Termination Tin
Material – Resin High Temperature Thermoplastic
Net Weight 0.722/g
Number of Rows 1
Orientation Right Angle
PC Tail Length 3.30mm
PCB Locator No
PCB Retention None
PCB Thickness – Recommended 1.60mm
Packaging Type Tube
Pitch – Mating Interface 2.54mm
Plating min – Mating 0.381µm
Plating min – Termination 1.905µm
Polarized to Mating Part Yes
Shrouded Fully
Stackable No
Temperature Range – Operating -40°C to +105°C
Termination Interface: Style Through Hole
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 3.0A
Voltage – Maximum 250V
Manufacturer Part Number: 70553-0002
