Description

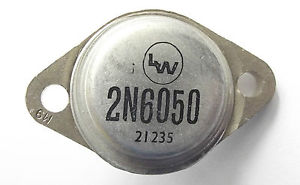

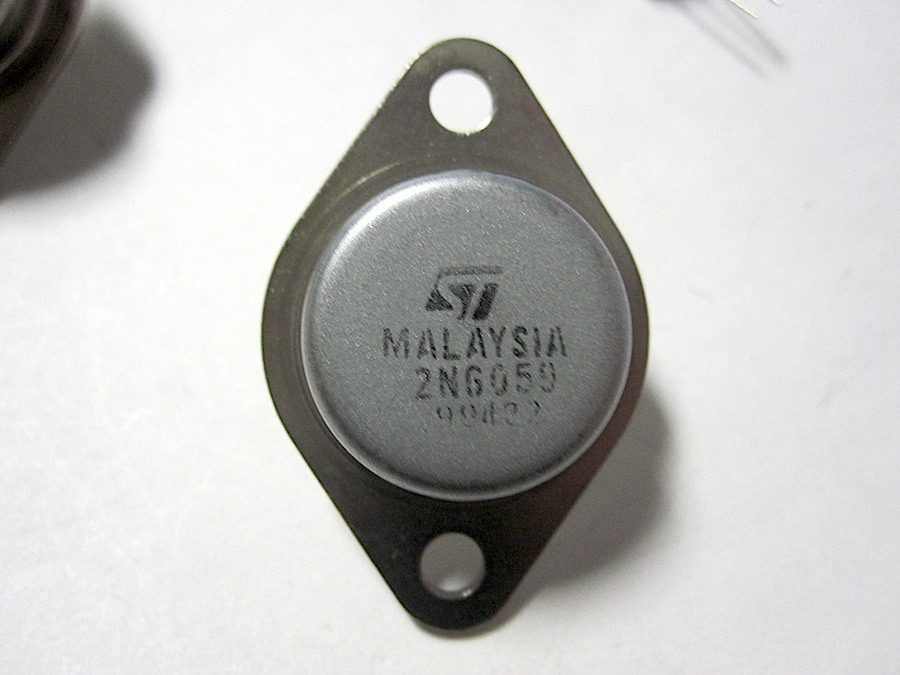

MOTOROLA – MOT 2N6050 TRANSISTOR BJT DARLINGTON PNP 60V V(BR)CEO12A
Specifications
Type PNP
Number of Elements per Chip 1
Maximum Collector Emitter Voltage (V) 60
Maximum Collector Base Voltage (V) 60
Maximum Emitter Base Voltage (V) 5
Maximum Continuous DC Collector Current (A) 12
Maximum Power Dissipation (mW) 150000
Maximum Base Emitter Saturation Voltage (V) 4@120mA@12A
Maximum Collector Emitter Saturation Voltage (V) 2@24mA@6A|3@120mA@12A
Minimum DC Current Gain 750@6A@3V|100@12A@3V
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Sleeve
Temperature Grade Military
Mounting Through Hole
Package Height (mm) 11.43(Max)
Package Length (mm) 39.96(Max)
Package Width (mm) 26.67(Max)
PCB changed 2
Tab Tab
Standard Package Name TO-204-AA
Supplier Package TO-3
Pin Count 3
Lead Shape Through Hole
Manufacturer Part Number: 2n6050
Motorola
