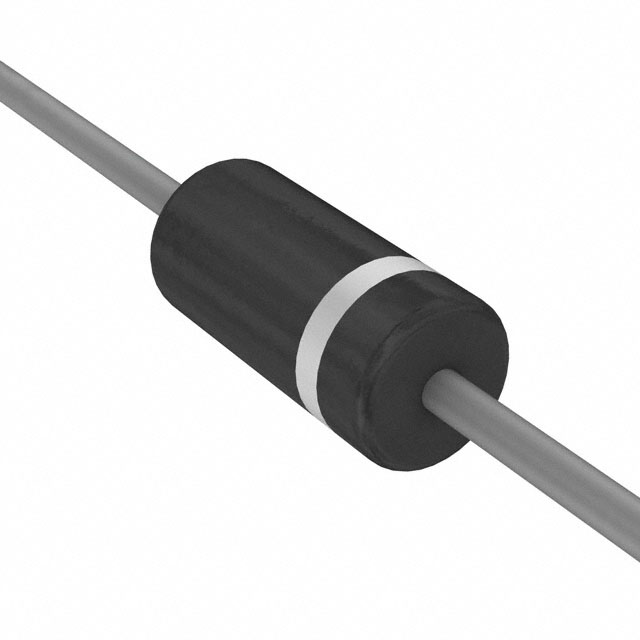

Motorola 3EZ20D5 Zener Diode 20V 3W 5% DO-15 Axial Through Hole
The 3EZ3.9D5 thru 3EZ200D5 series of axial-leaded 3.0 watt Zeners provides voltage regulation selections with 5% tolerances from 3.9 to 200 volts in a DO-41 plastic package size. Other Zener voltage tolerances are also available by changing the suffix number to the tolerance desired such as 1, 2 3, or 4 for tighter tolerances or 10 for wider tolerance. These plastic encapsulated Zeners are also available in various military equivalent screening levels by adding a prefix identifier as also described in the Features section. They may be operated at high maximum dc currents or full power rating with adequate heat. Microsemi also offers numerous other Zener products to meet higher and lower power applications.
Product Attributes
Category Discrete Semiconductor Products
Family Diodes – Zener – Single
Part Status Active
Voltage – Zener (Nom) (Vz) 20V
Tolerance ±5%
Power – Max 3W
Impedance (Max) (Zzt) 7 Ohm
Current – Reverse Leakage @ Vr 500nA @ 15.2V
Voltage – Forward (Vf) (Max) @ If 1.2V @ 200mA
Operating Temperature -55°C ~ 150°C
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Manufacturer Part Number: 3EZ20D5
Motorola
