Description

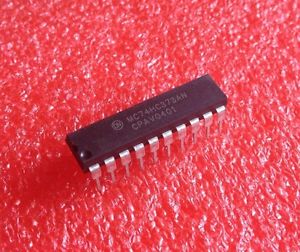

MOTOROLA 74HC373AN MC74HC373A OCTAL TRANSPARENT D-TYPE
Number of Circuits: 8 Circuit
Logic Type: D-Type Transparent Latch
Logic Family: HC
Polarity: Non-Inverting
Number of Output Lines: 1 Line
High Level Output Current: – 7.8 mA
Low Level Output Current: 7.8 mA
Propagation Delay Time: 43 ns at 6 V
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Package / Case: PDIP-20
Packaging: Tube
Brand: Texas Instruments
Mounting Style: Through Hole
Number of Channels: 8 Channels
Number of Input Lines: 3 Line
Operating Supply Current: 80 uA
The MC54/74HC373A is identical in pinout to the LS373. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs
Manufacturer:Motorola
Datasheet:Motorola/74HC373AN.pdf
