Description

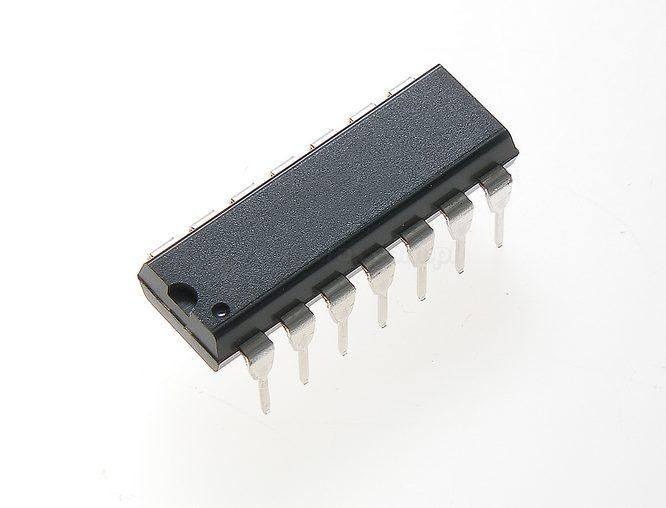

Motorola 74LS125AN Quad Buffer / Driver 3-State 24mA PDIP-14 Through Hole
Number of Input Lines: 4 Input
Number of Output Lines: 4 Output
Polarity: Non-Inverting
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package / Case: PDIP-14
Packaging: Tube
High Level Output Current: – 2.6 mA
Logic Family: LS
Logic Type: Bipolar
Low Level Output Current: 24 mA
Minimum Operating Temperature: 0 C
Number of Channels: 4
Operating Supply Current: 62 uA
Output Type: 3-State
Manufacturer Part Number: 74LS125AN
Motorola
