Description

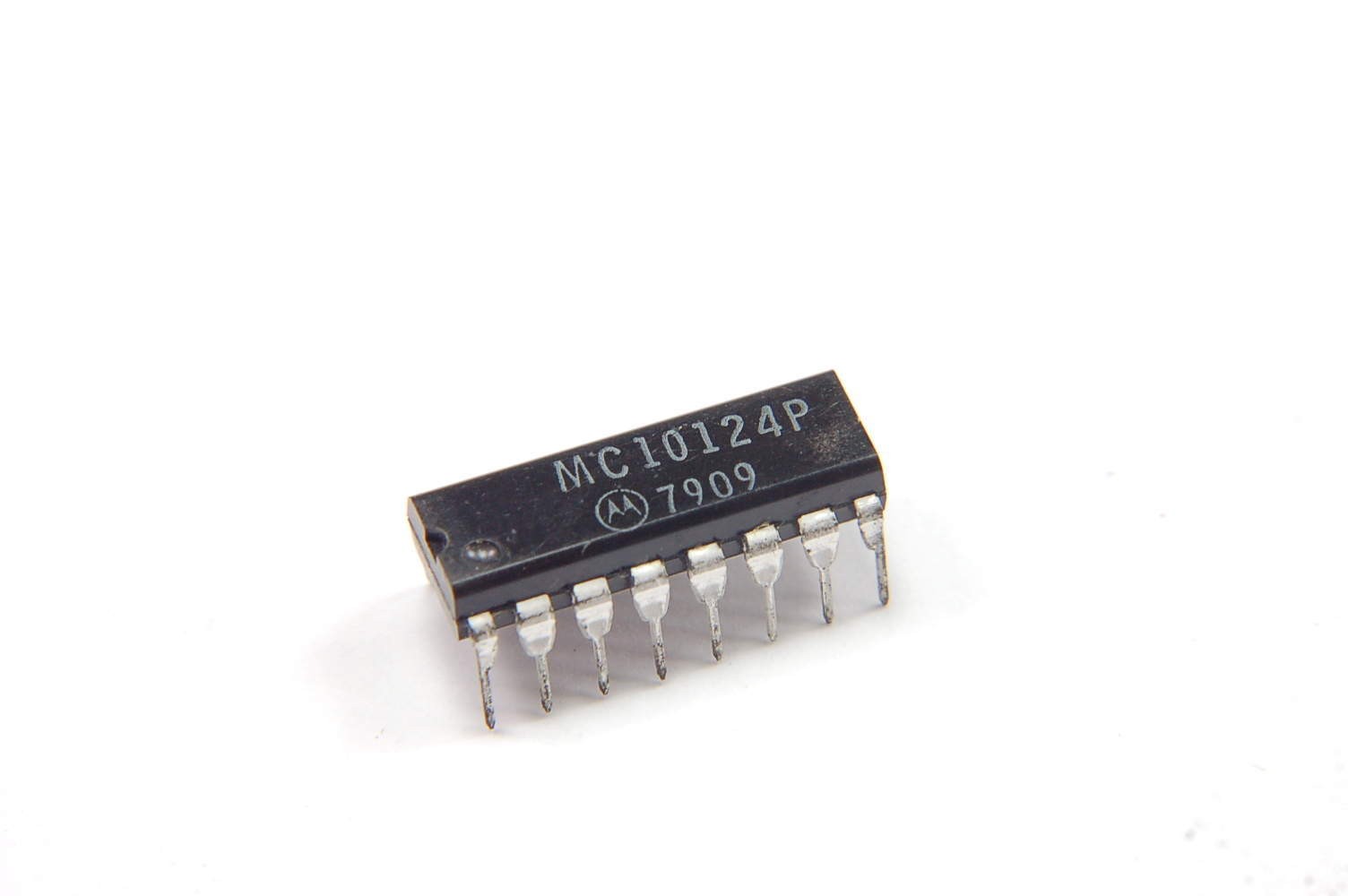

MOTOROLA MC10124P DIP Quad TTL to Ecl Translator Package: Plcc Pins=20
Specifications
Manufacturer: ON Semiconductor
Product Category: Translation – Voltage Levels
Type: TTL to MECL
Propagation Delay Time: 6 ns
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: PDIP-16
Brand: ON Semiconductor
Logic Family: ECL
Logic Type: Translator
Minimum Operating Temperature: – 30 C
Packaging: Rail
Unit Weight: 0.057419 oz
The MC10124 is a quad translator for interfacing data and control signals between a saturated logic section and the MECL section of digital systems. The MC10124 has TTL compatible inputs, and MECL complementary open–emitter outputs that allow use as an inverting/ non–inverting translator or as a differential line driver. When the common strobe input is at the low logic level, it forces all true outputs to a MECL low logic state and all inverting outputs to a MECL high logic state.
Manufacturer:Motorola
Datasheet:MOTOS04614-1.pdf
