Description

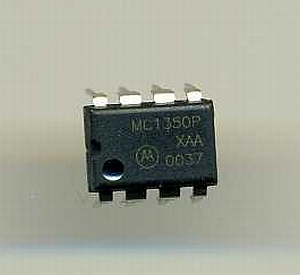

MOTOROLA MC1350P IF AMPLIFIER
Monolithic IF Amplifier The MC1350 is an integrated circuit featuring wide range AGC for use as an IF amplifier in radio and TV over an operating temperature range of 0° to +75°C
This IF amplifier is intended to be driven from a ~200 ohm CW crystal filter.
Output of this circuit is designed to drive an SA612 Audio Detector.
The PCB is designed to use either the MC1350 or the higher gain MC1349.
Only the MC1350P is included with the kit.
Manufacturer:Motorola
Datasheet:MC1350P-Motorola.pdf
