Description

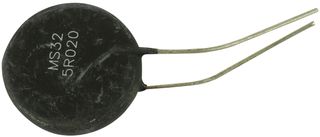

Ametherm MS32 5R020-A NTC THERMISTOR Kinked Leads 5 Ohms 20A, Thermistor Type:NTC, Resistance:5ohm, Beta Value (K):-, Thermistor Case Style:Radial Leaded, No. of Pins:2, Operating Current:20A, Operating Voltage Max:440V , RoHS
Manufacturer Ametherm
RoHS
Rated current 20 A
Voltage 120 VAC, 240 VAC, 480 VAC, 680 VAC
Resistance 5 Ohms
Tolerance 25%
Housing diameter 31 mm
Housing width 7 mm
Sseries MegaSurge
Dimensions 31 mm Dia. x 7 mm W, 1 mm diameter wires
Lead Spacing 7.8 mm
Spacing of 5.4 mm pitch
Type Inrush Current Limiter Thermistors
Lead Diameter 1mm
Bulk packaging
Pitch Spacing 5.4 mm
Factory Pack Quantity 500
Type Inrush Current Limiter Thermistors
Specifications
Category Circuit Protection
Family Inrush Current Limiters (ICL)
Series MegaSurge™
Packaging Bulk
Resistant @ 25°C 5.0 Ohm
Tolerance ±25%
Current – Steady State Max 20A
R @ Current 0.035 Ohm
Diameter 1.18″ (30mm)
Approvals UL
Lead Spacing 0.307″ (7.80mm)
Online Catalog MegaSurge MS12, 15, 22, 32 Series
Other Names MS325R020
Electrical Specifications
Max Steady State Current upto 65°c: 20.00 A
Max Rec. Energy Rating: 300 J
Actual Failure Instantaneous Energy: 670 J
Resistance @ 100% Max Current: 0.04 W
Resistance @ 50% Max Current: 0.10 W
Body Temperature at 100% Max Current: 204.00 °c
Dissipation Constant: 55.4 mw/°c
Thermal Time Constant: 194 Sec.
Manufacturer:Ametherm
Datasheet:Ametherm/MS325R020.pdf
