Description
MULTICOMP FR107 Diode; Diode Type:Fast Recovery; Repetitive Reverse Voltage Max Vrrm:1000V ; Forward Current If(AV) :1A; Forward Voltage Max VF:1.3V; Reverse Recovery Time trr:500ns; Forward Surge Current Max Ifsm :30A ;RoHS

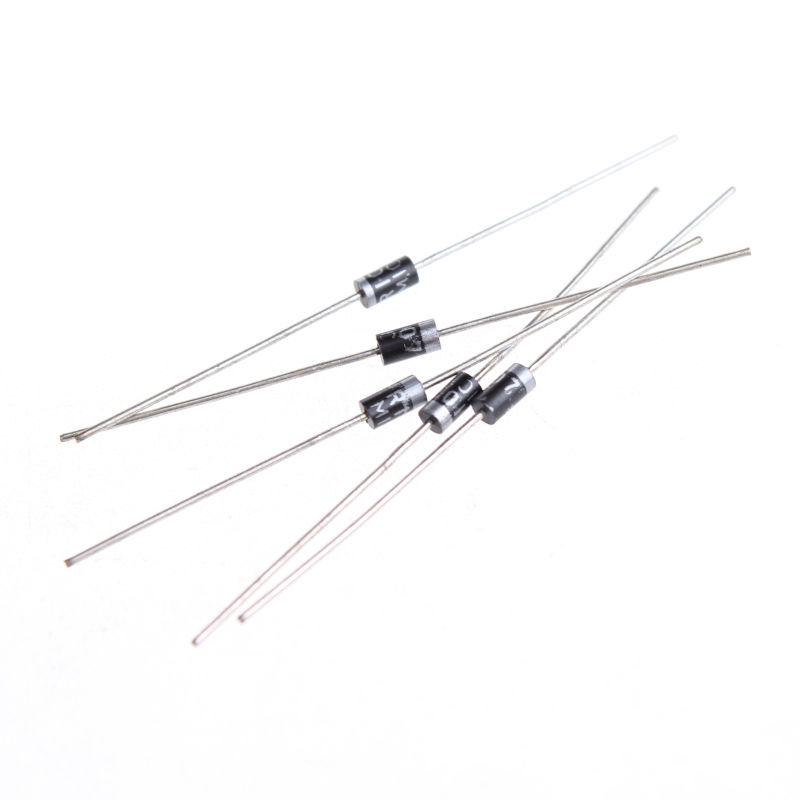

The FR107 from Multicomp is an axial leaded fast recovery power diode in DO-41 package. This device features high current capability, low forward voltage, high reliability and high surge current capability.
- Maximum repetitive reverse voltage Vrrm of 1kV
- Peak forward surge current IFSM of 30A
- Forward Current If(AV) of 1A
- Maximum forward voltage VF of 1.2V at 1A
- Operating junction temperature range from -65°C to 150°C
Applications
Power Management; Industrial; Portable Devices; Consumer Electronics
Manufacturer Part Number: FR107
Manufacturer: Multicomp
