Description

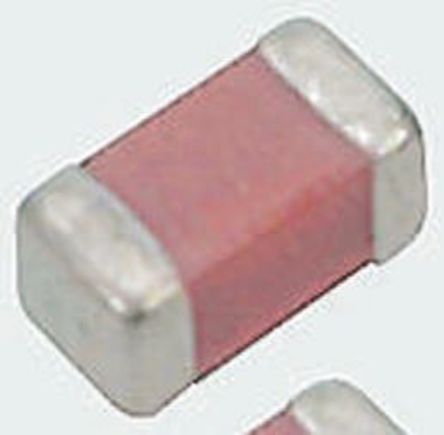

Murata Manufacturing Co Ltd GRM188R11E333KA01D Capacitor ^Murata 0603 GRM 33nF Ceramic Multilayer Capacitor, 25 V dc, 125C, R*1 Dielectric, 10% SMD
^GRM High Dielectric Constant Type is ideal for Decoupling and Smoothing Circuits, and for Rated voltages of 200V min they are best for Clamp Snubber circuits and Smoothing Circuits
^
^Large capacity in small size multilayer structure
^High reliability with no polarity
^External electrodes are Tin plated thus excellent solderability
Specifications
Capacitance 33nF
Voltage 25 V dc
Package/Case 0603
Mounting Type Surface Mount
Dielectric R*1
Tolerance ±10%
Dimensions 1.6 x 0.8 x 0.8mm
Length 1.6mm
Depth 0.8mm
Height 0.8mm
Series GRM
Tolerance Minus -10%
Tolerance Plus +10%
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Temperature Coefficient ±15%
Manufacturer:Murata Power Solutions
Datasheet:Murata/MURES55295-1.pdf
