Description

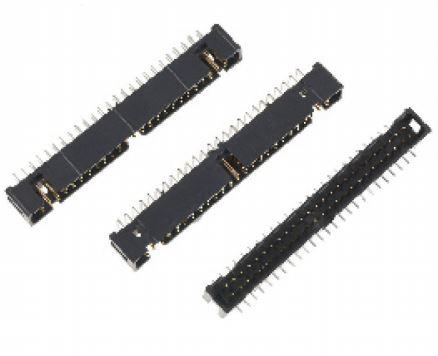

N2524-6002-RB 3M Connector Header Header; LowProfile; 4-Wall; 0.1Inch; HighTemp; Straight; SMT 24 position 0.100″ (2.54mm) Through Hole RoHS
Specifications
Manufacturer: 3M
Product Category: Headers & Wire Housings
RoHS: Details
Product: Headers
Type: Shrouded
Number of Positions: 24 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Row Spacing: 2.54 mm
Mounting Style: Through Hole
Termination Style: Solder Pin
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Mating Post Length: 6.17 mm
Termination Post Length: 2.84 mm
Series: 2500
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 105 C
Current Rating: 1.75 A
Housing Material: Polyester (PCT)
Voltage Rating: 1000 V
Brand: 3M Electronic Solutions Division
Contact Material: Copper Alloy
Flammability Rating: UL 94 V-0
Housing Color: Black
Latching Type: Unlatched
Product Type: Headers & Wire Housings
Factory Pack Quantity: 392
Subcategory: Headers & Wire Housings
Part # Aliases: 05111162730 80400031383 N2524-6002RB
Unit Weight: 0.088009 oz
Manufacturer:3M Electronic Solutions
Datasheet:3M/Intercon-Shortform-Cat.pdf
