Description

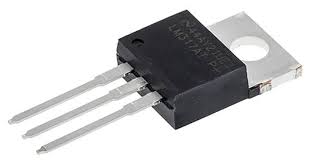

National Semiconductor / Texas Instruments LM317AT Linear Voltage Regulator, Adjustable Positive, 40V primary input, 1.2-37V/1.5A/1 Output, TO-220-3
Manufacturer: National Semiconductor(acquired by Texas Instruments)
Product Category: Linear Voltage Regulators
RoHS Compliant By Exemption
Output Type: Adjustable
Output Voltage: 1.2 V to 37 V
Output Current: 1.5 A
Load Regulation: 0.5 %
Input Voltage MAX: 40 V
Line Regulation: 0.01 % / V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220
Brand: Texas Instruments
Input Voltage MIN: 4.2 V
Minimum Operating Temperature: – 40 C
Number of Outputs: 1
Packaging: Tube
Polarity: Positive
PSRR / Ripple Rejection – Typ: 80 dB
Series: LM317-N
Product Details
LM317 Linear Voltage Regulators, Texas Instruments
The Texas Instruments LM317 positive linear voltage regulator will operate at 1.5A for voltages ranging over 1.2 to 37 volts. Two external resistors are essential to set the output voltage. The adjustable three-terminal regulator is very robust, featuring safe area protection, internal current limiting and thermal overload shutdown. The protection will remain even when the adjustment terminal is disconnected. The LM317 regulator IC produces a typical line regulation of 0.01% and typical load regulation of 0.1%
Output Voltage Range: 1.2 V to 37 V
Output Current: 1.5 A (LM317, LM317-N); 0.1 A (LM317L) and 0.5 A (LM317M)
Short-circuit current limiting, Thermal protection, and Safe-area compensation
Floating Operation for High Voltage Applications
Linear Voltage Regulator – Texas Instruments
A linear voltage regulator is a device that maintains a steady voltage. The linear regulator can operate with a small input–output differential voltage. The voltage regulator may offer positive or negative polarity, a fast transient response, wide input voltage range, low quiescent current and even low noise with PSRR.
Manufacturer Part Number: LM317AT
Manufacturer: National Semiconductor
