Description

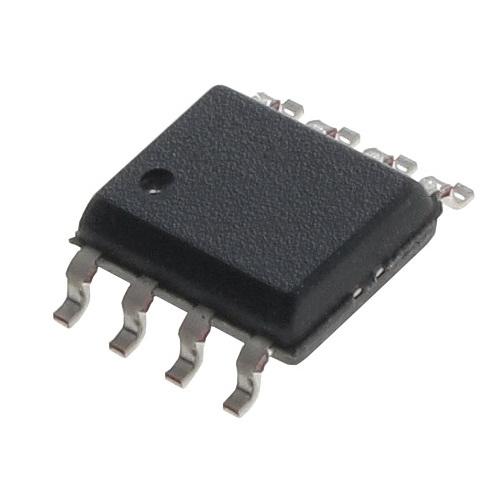

National Semiconductor NM93C46EM8X 1024-Bit Serial EEPROM +4.5V to +5.5V 64 x 16 1024 Bit SMT / SMD SOP-8
The C56 C66 devices are bits respectively of CMOS non-volatile electrically erasable memory divided into 16-bit registers They are fabricated using National Semiconductor’s floating-gate CMOS process for high reliability and low power consumption These memory devices are available in both SO and TSSOP packages for small space considerations The EEPROM Interfacing is MICROWIRE compatible for simple interface to standard microcontrollers and microprocessors There are 7 instructions that control these devices Read Erase Write Enable Erase All Write All and Erase Write Disable The ready busy status is available on the DO pin during programming
SPECIFICATIONS
| Mfr Package Description | 0.150 INCH, PLASTIC, SOP-8 |
| Status | Transferred |
| Clock Frequency-Max (fCLK) | 1.0 MHz |
| JESD-30 Code | R-PDSO-G8 |
| Memory Density | 1024.0 bit |
| Memory IC Type | EEPROM |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Number of Words | 64.0 words |
Manufacturer:National Semiconductor
Datasheet:NATLD079-1-32.pdf
