Description

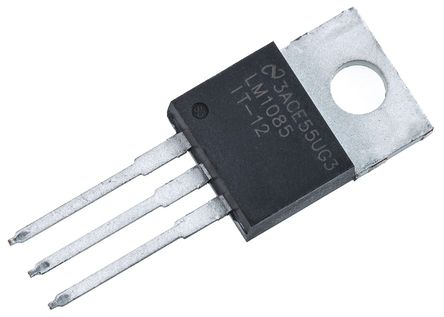

LM1085IT-12/NOPB National Semiconductor IC LDO Regulator Position 12V 3A 3-Pin(3+Tab) TO-220 Rail
LDO (Low Dropout) Linear Voltage Regulators
A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.
Specifications
Output Voltage 12 V
Output Type Fixed
Package Type TO-220
Maximum Output Current 3A
Mounting Type Through Hole
Minimum Input Voltage 2.6 V
Maximum Input Voltage 18 V
Pin Count 3
Number of Outputs 1
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
Dimensions 10.16 x 4.7 x 8.89mm
Load Regulation 36 mV
Line Regulation 25 mV
Length 10.16mm
Height 8.89mm
Width 4.7mm
Manufacturer Part Number: LM1085IT-12/NOPB
Manufacturer: Texas Instruments
