Description

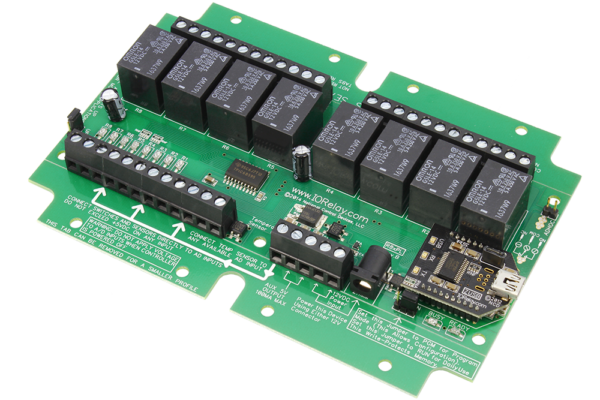

This ProXR Lite relay controller is capable of switching 8 on-board SPDT relays, each with 5 or 10 Amps of current, customized at the time of ordering. Each SPDT relay includes 3 screw terminals for normally open, common, and normally closed contact closure relay output connectivity. This controller features a modular communications interface, capable of accepting USB, RS-232, Ethernet, WiFi, Bluetooth, Industrial Wireless communication modules, and more. On-Board Analog to Digital Converters allow monitoring of 8 inputs at 8 or 10-Bit resolution. Analog inputs are ideal for connecting external sensors, or connect buttons and switches to the inputs and configure the controller to manually control relays when buttons are pressed. Turn relays on or off, toggle the state of a relay, or trigger relay flashers all from external switches.
Features
Control 8 On-Board General-Purpose Relays via Wireless or Computer Control
Available with 5 or 10-Amp SPDT Relays for General Purpose Switching Applications
On-Board LEDs Display Relay Status, Busy State and Ready State
Use Base Station Software to Help you Learn the ProXR Command Set
Modular Communications Interface Supports Many Popular Communication Modules:
WiFi, Bluetooth, Ethernet, WebPage, Industrial Wireless, USB, RS-232 and More
16 Background Timers Can be Assigned to Any of the On-Board Relays
Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
Control One Relay at a Time or All Relays Simultaneously
Integrated 8-Channel 8/10-Bit Analog to Digital Converter Inputs
Read Sensors or Manually Control Relays with Integrated ADC Inputs
Manufacturer:Electronic Components
Datasheet:R85PL-ZRS.pdf
