Description
NCV2904DR2G ON Semiconductor Operational Amplifier, Dual, 1 MHz, 2, 0.6 V/ s, 3V to 32V, SOIC8
Specifications
Manufacturer: ON Semiconductor
Product Category: Operational Amplifiers – Op Amps
RoHS
Mounting Style: SMD/SMT

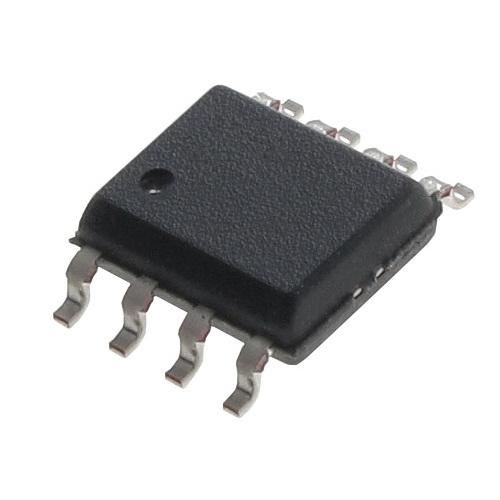

Package / Case: SOIC-8
Supply Voltage – Max: 32 V
Output Current per Channel: 40 mA
Number of Channels: 2 Channel
GBP – Gain Bandwidth Product: 1 MHz
SR – Slew Rate: 0.6 V/us
CMRR – Common Mode Rejection Ratio: 50 dB
Ib – Input Bias Current: 250 nA
Vos – Input Offset Voltage: 7 mV
Supply Voltage – Min: 3 V
Operating Supply Current: 1.2 mA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Shutdown: No Shutdown
Series: NCV2904
Qualification: AEC-Q100
Packaging: Cut Tape
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 4 mm (Max)
Brand: ON Semiconductor
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 50 dB
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 5.7 V
Voltage Gain dB: 100 dB
Unit Weight: 0.019048 oz
Manufacturer Part Number: NCV2904DR2G
Manufacturer: ON Semiconductor
