Description

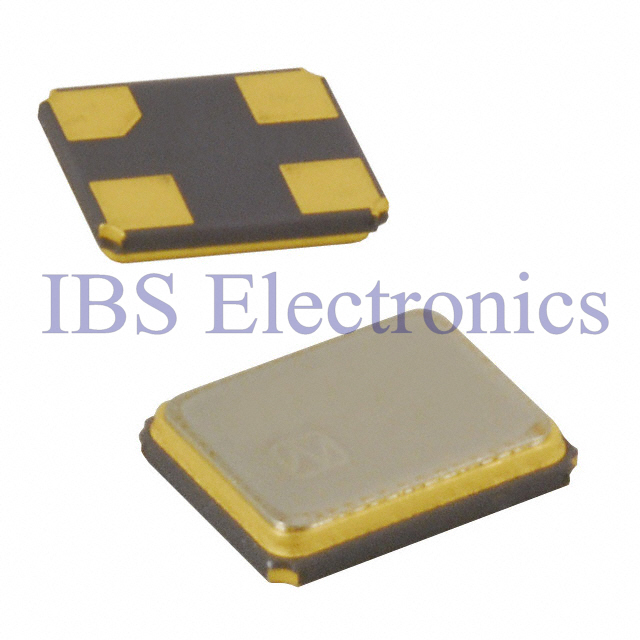

NDK NX3225SA-20.000MHZ-STD-CSR-1Crystal 20.0000MHz 15ppm 8pF 50 Ohm -10°C – 75°C Surface Mount 4-SMD, No Lead (DFN, LCC)
Type MHz Crystal
Frequency 20MHz
Frequency Stability ±15ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature -10°C ~ 75°C
Ratings –
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead (DFN, LCC)
Size / Dimension 0.126″ L x 0.098″ W (3.20mm x 2.50mm)
Height 0.028″ (0.70mm)
Manufacturer:NDK
Datasheet:c_NX3225SA-STD-CSR-6_e.pdf
