Description
Voltage-Controlled Crystal Oscillators (VCXO)
Voltage-Controlled SAW Oscillator (VCSO)
♦ VCXO has variable capacitance diodes inserted in series with a Crystal unit, and the capacitance of the diodes are changed by the application of an external voltage which causes the Oscillator to develop frequency variations.
Multi Mode VCXO
A type of crystal oscillator providing Frequency Selection Function (including setable desired frequency by I2C) and allowing customization of specifications (e.g., output level, supply voltage).
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Overall Freq. Tolerance |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV5032S[ ] | 5.0 | 3.2 | 1.2 | 15 | 2100 | PECL LVDS CML |
±10 ±20 ±50 |
+1.8 +2.5 +3.3 |
-40 | +85 | 100 |
| 15 | 700 | HCSL | |||||||||
| 15 | 200 | CMOS | |||||||||
| NV7050S[ ] | 7.0 | 5.0 | 1.6 | 15 | 2100 | PECL LVDS CML |
±10 ±20 ±50 |
+1.8 +2.5 +3.3 |
-40 | +85 | 100 |
| 15 | 700 | HCSL | |||||||||
| 15 | 200 | CMOS | |||||||||
Ultra Low Phase Noise VCXO
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Absolute Pull Range |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV13M09WS | 13.8 | 9.2 | 2.8 | 100 | 125 | CMOS | ±5 | +3.3 | 0 | +70 | 30 |
| -40 | +85 | ||||||||||
| NV13M09WT | 13.8 | 9.2 | 5.5 | 100 | 125 | CMOS | ±5 | +3.3 | 0 | +70 | 30 |
| -40 | +85 | ||||||||||
For Fixed Communication and OA/AV
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Overall Freq. Tolerance |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV2520SA | 2.5 | 2.0 | 0.9 | 1.25 | 80 | CMOS | ±50 | +3.3 | -40 | +85 | 11 |
| NV3225SA | 3.2 | 2.5 | 0.9 | 1.25 | 80 | CMOS | ±50 | +3.3 | -40 | +85 | 11 |
For Fixed Communication
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Overall Freq. Tolerance |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV5032SB | 5.0 | 3.2 | 1.2 | 1.25 | 62 | CMOS | ±50 | +3.3 | -40 | +85 | 10 |
| NV5032SA | 5.0 | 3.2 | 1.2 | 62 | 170 | CMOS | ±50 | +3.3 | -40 | +85 | 35 |
| NV5032SC(Low Phase Noise) | 5.0 | 3.2 | 1.2 | 100 | 200 | LVPECL | ±50 | +3.3 | -40 | +85 | 65 |
| NV7050SF | 7.0 | 5.0 | 1.6 | 1.25 | 62 | CMOS | ±50 | +3.3 | -40 | +85 | 10 |
| 122.88 | 35 | ||||||||||
| NV7050SA | 7.0 | 5.0 | 1.6 | 62 | 170 | CMOS | ±50 | +3.3 | -40 | +85 | 35 |
| NV7050SA(Low Phase Noise) | 7.0 | 5.0 | 1.6 | 100 | 200 | LVPECL | ±50 | +3.3 | -40 | +85 | 65 |
| NV7050SA(Wide Temp. Range) | 7.0 | 5.0 | 1.6 | 122.88 | 122.88 | LVPECL | ±50 | +3.3 | -40 | +105 | 65 |
| NV7050SA | 7.0 | 5.0 | 1.6 | 80 | 170 | LVPECL | ±50 | +3.3 | -40 | +85 | 85 |
| NV11M09YA | 11.4 | 9.6 | 3.9 | 75 | 800 | LVPECL | ±50 | +3.3 | -40 | +85 | 65 |
| NV13M08YM | 13.8 | 8.9 | 4.1 | 10 | 125 | CMOS | ±45 | +3.3 | -40 | +85 | 30 |
| NV13M09WK | 13.8 | 9.2 | 2.8 | 10 | 125 | CMOS | ±45 | +3.3 | -40 | +85 | 30 |
| NV13M08YK | 13.8 | 8.9 | 4.1 | 75 | 800 | LVPECL | ±50 | +3.3 | -40 | +85 | 65 |
| NV13M09WN | 13.8 | 9.2 | 2.8 | 75 | 800 | LVPECL | ±50 | +3.3 | -40 | +85 | 65 |
For Optical communication equipment (SONET, SDH, Ethernet)
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Overall Freq. Tolerance |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV13M08YN | 13.8 | 8.9 | 4.1 | 1600 | 2200 | LVPECL | ±70 | +3.3 | -10 | +85 | 150 |
DUAL RATE-VCXO
(Two frequency is selected by external input: 622.08 MHz or FEC rate.)
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Overall Freq. Tolerance |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NV11M09YA | 11.4 | 9.6 | 3.9 | 622.08 | 669.3266 | LVPECL | ±50 | +3.3 | -10 | +70 | 100 |
Voltage-Controlled SAW Oscillator (VCSO)
VCSO is a voltage controlled oscillator using SAW resonator. Output frequency is varied by an external voltage.
| VCXO Model Name |
Package Size (mm) |
Nominal Freq. (MHz) |
Output Level |
Absolute Pull Range |
Supply Voltage (V) |
Operating Temp. Range (°C) |
Current Consumption (mA) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | Min. | Max. | [×10-6] | [VCC] | Min. | Max. | Max. | ||
| NY13M09WA | 13.8 | 9.2 | 2.6 | 1680 | 2200 | LVPECL | ±50 | +3.3 | -10 | +85 | 100 |

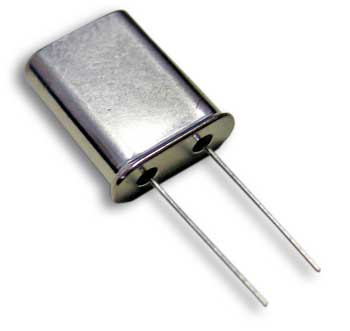

Manufacturer Part Number: 4067808
NDK
