Description

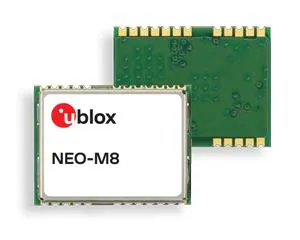

NEO-M8Q-0 U-Blox series RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -167dBm RF/IF and RFID GPS Modules RoHS
GPS is the most interesting part for makers. This is a high precision GPS module that includes a powerful NEO-M8N module from u-blox.
The NEO-M8N module is based on the u-blox M8 GNSS (GPS, GLONASS, BeiDou, QZSS, SBAS, and Galileo-ready1) engine that provides high sensitivity and minimal acquisition times while maintaining low system power.
The NEO-M8 is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration.
The NEO-M8 modules can receive and process the GLONASS satellite system as an alternative to the US-based Global Positioning System (GPS). The NEO-M8N offers high performance also at low power consumption levels.
The u-blox NEO-M8 modules can also benefit from the u-blox AssistNow assistance service.
The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules. For RF optimization the NEO-M8N/Q features an additional front-end LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity.
JMCU GPS Module-NEO-M8N includes high precision Integrated TTL to USB, plug and play to show your coordinates in Google Earth, send PC software plus Google Earth software. This module featured signal, data communication and the computer running LED indicator.
Features:
Core: u-blox NEO-M8N
Channel: 72 Channel
Plug and Play to display coordinates on Google Earth.
The Signal Indicating LED light
Data Communication LED light
Port: Micro USB
Interface: TTL
Position Accuracy: 2m
Single GNSS Update Rate: Up to 18Hz
Cold Starts Time: 26s
Aided starts Time: 2s
Reacquisition Time: 1s
Sensitivity:
Tracking and Nav: -167dBm
Cold starts: -148dBm
Hot starts: -157dBm
Antenna: IPX Active Antenna
Size: 18mm x 23m
NEO-M8 series
U-blox Versatile GNSS modules in different variants for easy manufacturing
Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Industry leading 167 dBm navigation sensitivity
Security and integrity protection
Supports all satellite augmentation systems
Advanced jamming and spoofing detection
Product variants to meet performance and cost requirements
Backward compatible with NEO-7 and NEO-6 families
Manufacturer:Electronic Components
Datasheet:NEO-M8-FW3_UBX-15031086.pdf
