Description
Used for outer/interlaminar insulation of transformers and coils.
Tape developed for outer/interlaminar insulation of transformers and coils. Nitto Denko has a wide lineup of backing thicknesses and adhesive types/colors; the tapes can be used for various applications.
Features
- Offers superior electrical insulation.
- Offers superior dimension stability.
- offers superior heat resistance.
- N arrow width processing is available.
- Available in long lengths.
- Good processability
Applications
- Electrical insulation of transformers and coils.
Properties
| Product No. | No.3161FR1 | No.3161FR2 | ||
| Adhesive | Flame-retardant acrylic | Flame-retardant acrylic | ||
| Total thickness | 0.054 mm/ 2.12 mil | 0.080 mm/ 3.14 mil | ||
| Backing thickness[mm] | 0.025 mm/ 0.98 mil | 0.050 mm/ 1.96 mil | ||
| Standard length[m] [Core Diameter(mm)] |
30[35φ]/50[75φ] | |||

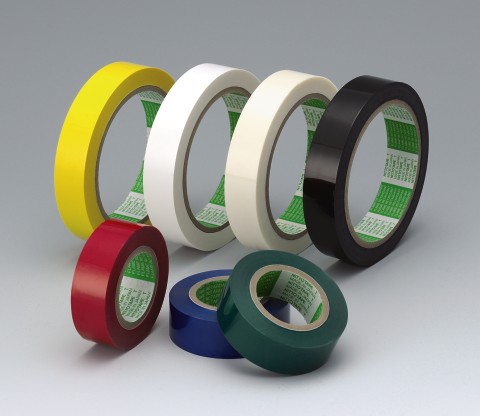

| Color | Opague White | White,Yellow,Red, Green,Blue,Black | Opague White | White,Yellow,Red, Green,Blue,Black |
| Peeling strength | 8.0 N/19mm / 38 oz/in | 8.0 N/19mm / 38 oz/in | 9.0 N/19 mm / 43 oz/in | 9.0 N/19mm / 43 oz/in |
| Tensile strength [N/19mm] | 100 N/19mm / 480 oz/in | 100 N/19mm / 480 oz/in | 196 N/19 mm / 942 oz/in | 196 N/19 mm / 942 oz/in |
| Elongation[%] | 110 | 110 | 130 | 130 |
| Breakdown voltage [kV] | 6.0 | 7.0 | 8.0 | 11.0 |
| Electrolytic corrosion factor | 1.0 | 1.0 | 1.0 | 1.0 |
| Certified Standard/ Features | UL-510-certified(Temperature rating:130?/ 266°F? | |||
Manufacturer:Electronic Components
Datasheet:Nitto/SDS_NJ_NO3161FR1_Black_E.pdf
