Description

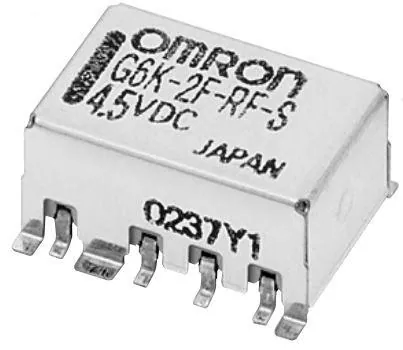

Omron Corporation G6K-2F-RF DC5 Electromechanical Relay 5VDC 237Ohm 1A DPDT (12.8×7.8×5.4)mm SMD High Frequency Relay
Part Details:
Manufacturer: Omron
Part No: G6K2FRFDC5
Category: Electromechanical>Relays & I/O Modules>Relays
RoHS:
Datasheet:Omron – G6K2FRFDC5
Part Specifications:
Type High Frequency Relay
Relay Construction Non-Latching
Contact Arrangement DPDT
Coil Voltage DC 5V
Coil Current 21.1mA
Contact Form 2 Form C
Voltage Rating (VDC) 60
Voltage Rating (VAC) 125V
Dropout Volt 0.5VDC
Coil Resistance 237ohm
Pick-up Voltage (Max) 4VDC
Maximum Power Rating 30W/37.5VA
Operate Time 3ms
Contact Current Rating 1A
Contact Material Silver/Gold
Coil Suppression Diode No
Push To Test Button No
LED Indicator No
Seal Sealed
Product Height (mm) 5.4mm
Product Depth (mm) 7.8mm
Product Length (mm) 12.8mm
Operating Temp Range -40C to 70C
Pin Count 8
Mounting Style Surface Mount
Termination Style Gull Wing
Manufacturer:Omron Electronics
Datasheet:G6K-2F-RF-DC5.pdf
