Description

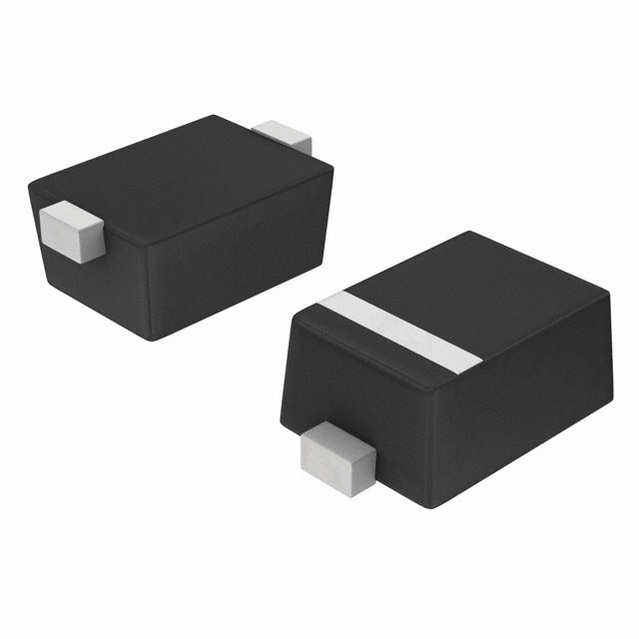

NSR0620P2T5G ON Semiconductor DIODE, SMALL SIGNAL, 500mA, 20V, SOD-923-2, Forward Current If(AV):500mA, Repetitive Reverse Voltage Vrrm Max:20V, Forward Voltage VF Max:520mV, Reverse Recovery Time trr Max:4ns, Forward Surge Current Ifsm Max:1A, No. of Pins:2
Specifications
Manufacturer: ON Semiconductor
Product Category: Schottky Diodes & Rectifiers
RoHS: RoHS Compliant
Brand: ON Semiconductor
Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SOD-923
If – Forward Current: 0.5 A
Vrrm – Repetitive Reverse Voltage: 20 V
Vf – Forward Voltage: 0.52 V
Ifsm – Forward Surge Current: 1 A
Configuration: Single
Technology: Si
Ir – Reverse Current: 10 uA at 10 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Packaging: Reel
Series: NSR0620P2
Schottky barrier diodes are optimized for very low forward voltage
drop and low leakage current and are used in a wide range of dc?dc
converter, clamping and protection applications in portable devices.
NSR0620P2 in a SOD?923 miniature package enables designers to
meet the challenging task of achieving higher efficiency and meeting
reduced space requirements.
Manufacturer:ON Semiconductor
Datasheet:on-semi/NSR0620P2-D.PDF
