Description

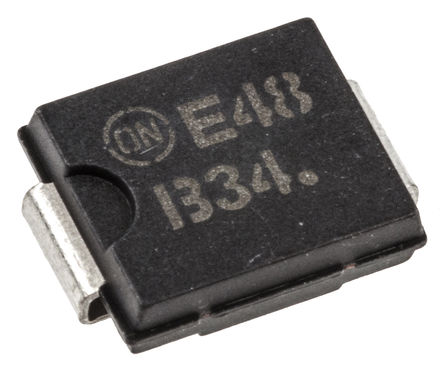

ON Semiconductor MBRS340T3G SMT Schottky Diode, 40V 4A, 2-Pin DO-214AB
Diode Configuration Single
Maximum Continuous Forward Current 4A
Number of Elements per Chip 1
Peak Reverse Repetitive Voltage 40V
Mounting Type Surface Mount
Package Type DO-214AB
Diode Type Schottky
Peak Forward Voltage 500mV
Pin Count 2
Length 6.86mm
Width 5.84mm
Height 2.13mm
Maximum Operating Temperature +150 °C
Dimensions 2.13 x 6.86 x 5.84mm
Minimum Operating Temperature -65 °C
Peak Non-Repetitive Forward Surge Current 0.08kA
Peak Reverse Current 2mA
Manufacturer Part Number: MBRS340T3G
Manufacturer: ON Semiconductor
