Description

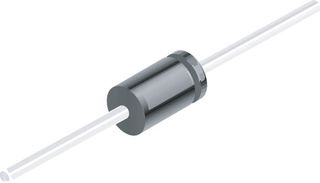

P6KE220A _R2 _10001 PanJit Semiconductor DIODE TVS TH P6KE220A 400W 200V DO15 RoHS
Product Category: TVS Diodes – Transient Voltage Suppressors
RoHS: RoHS Compliant
Termination Style: Axial
Package / Case: DO-15
Polarity: Unidirectional
Working Voltage: 185 V
Breakdown Voltage: 209 V to 231 V
Clamping Voltage: 328 V
Peak Surge Current: 1.9 A
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 175 C
Brand: Fairchild Semiconductor
Length: 7.62 mm
Mounting Style: Through Hole
Operating Temperature Range: – 65 C to + 175 C
Packaging: Reel
Pd – Power Dissipation: 600 W
Factory Pack Quantity: 4000
Type: Transient Voltage Suppressors
Width: 3.56 (Max) mm
The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
- Halogen-Free and RoHS compliant
- Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C
- Glass passivated junction
- 600W peak pulse capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 1μA above 13V
- High temperature soldering guaranteed: 265°C./10 seconds/ 0.375â€,(9.5mm) lead length, 51bs., (2.3kg) tension
- Plastic package has Underwriters Laboratory Flammability classification 94V-O
- Matte Tin Lead–free plated
Manufacturer Part Number: P6KE220A_R2_10001
Manufacturer: Panjit
