Description

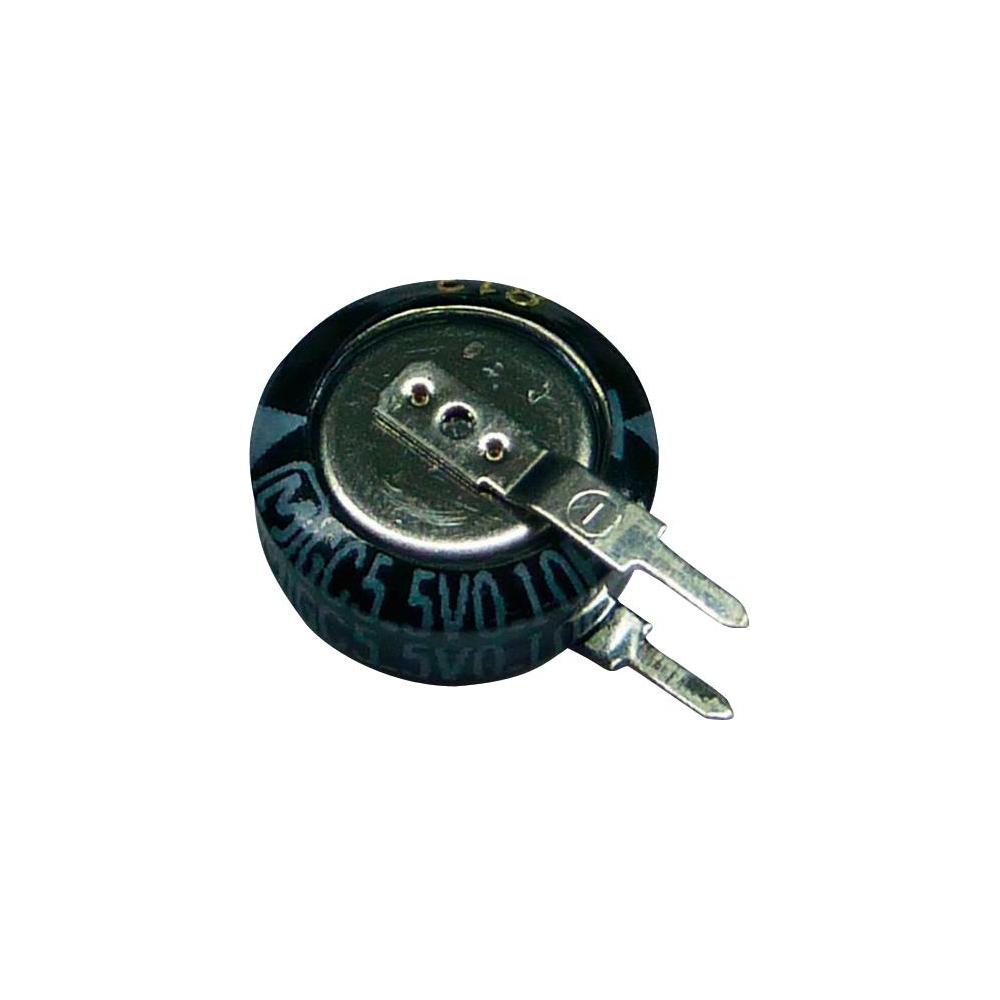

Panasonic EEC-S0HD224V Supercapacitor / Ultracapacitor 0.22F (220,000uF) 5.5V Radial Through Hole
Specification
SMD Not SMD
Tolerance on capacitance -20 to 80 %
Body diameter 10.5 mm
Occupied-length 10.5 mm
Occupied-width 5 mm
Occupied-height 11.5 mm
Lead(terminal) pitch 5 mm
Quantity(min. packaging unit) 200 PCS.
Body shape Coin type(multi-layer structure)
Maximum operating voltage 5.5 V
Capacitance 0.22 F
Internal resistance(max.) 75 Ohm
Category temperature range -25 to 70 Cel
Endurance 1000 h
Forming & packaging feature Bulk(no lead/terminal forming),bag packing
Product Overview
The Panasonic SD series are stacked coin type electric double layer capacitors (Gold Capacitor). Electric double layer capacitor does not have dielectric but uses a physical mechanism that generates an electric double layer which performs function of dielectric. These stacked coin type capacitors function as a battery and they are ideally suited for applications requiring secondary power source as a back up energy source for microprocessors and solar battery. These gold capacitors realize large capacitance using activated carbon for electrode.
- Available in 0.22F and 0.33F high capacitance values
- Rated voltage of 5.5VDC
- Operating temperature range -25°C to 70°C
- Endurance of 1000h at 70°C
- Superior charge and discharge performance compared with secondary batteries
- Higher capacitance compared with aluminium electrolytic capacitors
Applications
Consumer Electronics; Portable Devices; Power Management; Industrial
Manufacturer Part Number: EEC-S0HD224V
Manufacturer: Panasonic
