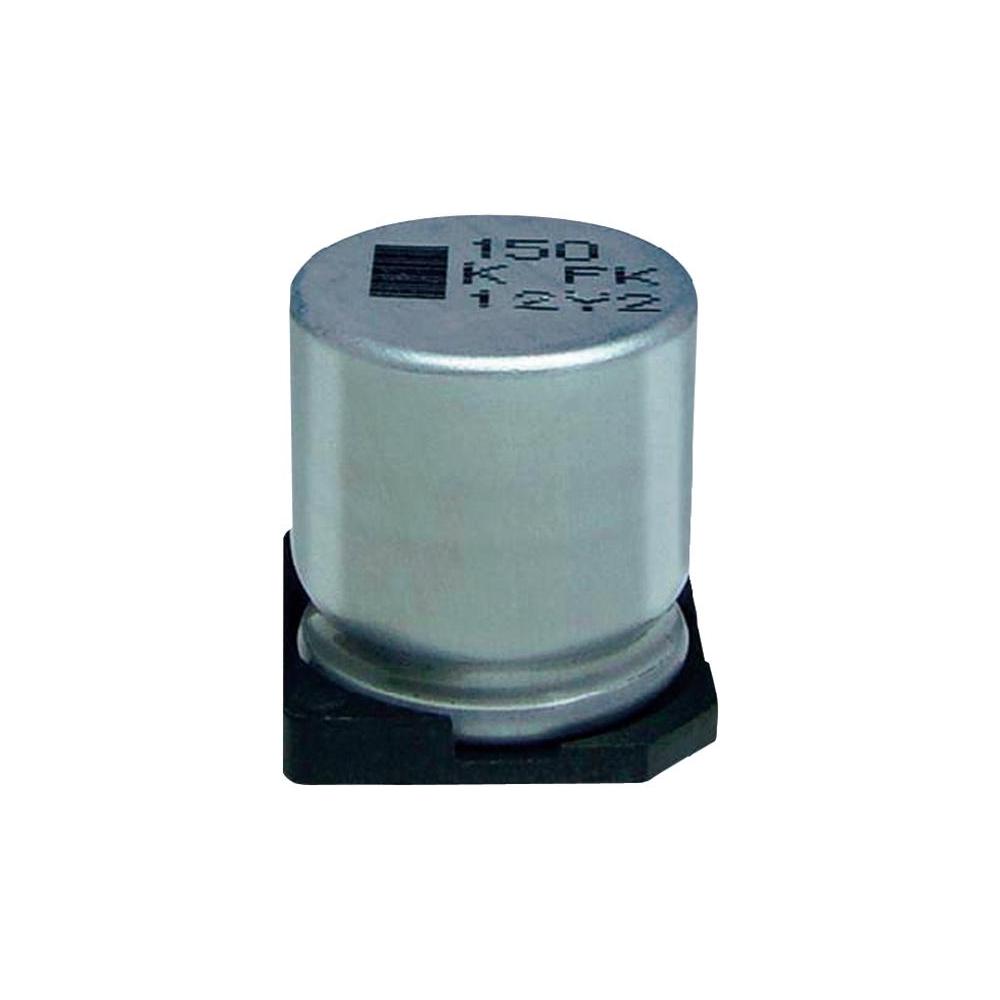

PANASONIC EEE-FK2A330P Aluminum Electrolytic Capacitor 33uF 100V 20% 105C SMT / SMD
Product Overview
The Panasonic FK series capacitors are automotive grade type V, surface mount polarized aluminium electrolytic capacitors. The capacitance value ranges from 3.3µF to 6800µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- Automotive grade AEC-Q200 compliant
- High reliability
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 2000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
Applications
Automotive; Industrial; Power Management; Consumer Electronics; Portable Devices
Manufacturer Part Number: EEE-FK2A330P
Manufacturer: Panasonic
