Description

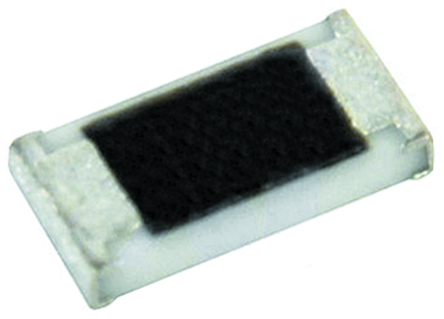

PANASONIC ELECTRONIC COMPONENTS ERJ-2RKF90R9X Surface Mount Chip Resistor, Thick Film, AEC-Q200 ERJ Series, 90.9 ohm, 100 mW, ± 1%, 50 V
Manufacturer: Panasonic
Product Category: Thick Film Resistors – SMD
RoHS: RoHS Compliant By Exemption
Resistance: 90.9 Ohms
Power Rating: 100 mW
Tolerance: 1 %
Temperature Coefficient: 100 PPM / C
Voltage Rating: 50 V
Case Code – in: 0402
Case Code – mm: 1005
Operating Temperature Range: – 55 C to + 155 C
Brand: Panasonic
Height: 0.35 mm
Length: 1 mm
Package / Case: 0402 (1005 metric)
Packaging: Reel
Product: Thick Film Resistors SMD
Series: ERJ
Factory Pack Quantity: 10000
Termination Style: SMD/SMT
Type: Precision Thick Film Resistors SMD
Width: 0.5 mm
- EIA 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available
- Small size, low weight resistors
- Automotive grade AEC-Q200 compliant
- Maximum power rating of 1W
- Available in ±0.5% and ±1% tolerance
- Temperature coefficient (TCR) of ±50, ±100, ±200 and ±300ppm/°C
- Available in -55°C to 125°C and -55°C to 155°C operating temperature ranges
- Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B standards
- Suitable for both reflow and flow soldering
Applications
Manufacturer:Panasonic
Datasheet:Panasonic/ERJ-xG,14,12(Z),1T.pdf
