PANASONIC ERJ-3EKF2101V RESISTOR 2.10K OHM 1/10W 1% 0603 SMD ROHS

PANASONIC ERJ-3EKF2101V RESISTOR 2.10K OHM 1/10W 1% 0603 SMD ROHS

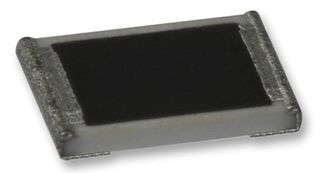

Panasonic Electronic Components ERJ-3EKF2101V Resistor, Thick Film, Res 2.1 Kilohms, 0.1W, 1%, SMT 0603

ENQUIRY!
SKU: ERJ-3EKF2101V Category: Tag: Brand:

Description

Panasonic Electronic Components ERJ-3EKF2101V Resistor Thick Film 0603 2.1K Ohm 1% 0.1W(1/10W) ±100ppm/C Molded SMD Automotive Punched T/R

Manufacturer: Panasonic
Product Category: Thick Film Resistors – SMD
RoHS: RoHS Compliant By Exemption Details
Resistance: 2.1 kOhms
Power Rating: 100 mW
Tolerance: 1 %
Temperature Coefficient: 100 PPM / C
Voltage Rating: 75 V
Case Code – in: 0603
Case Code – mm: 1608
Operating Temperature Range: – 55 C to + 155 C
Brand: Panasonic
Height: 0.45 mm
Length: 1.6 mm
Package / Case: 0603 (1608 metric)
Packaging: Reel
Product: Thick Film Resistors SMD
Series: ERJ
Factory Pack Quantity: 5000
Termination Style: SMD/SMT
Type: Precision Thick Film Resistors SMD
Width: 0.8 mm

The Panasonic ERJ 3E series resistors are automotive grade precision thick film chip resistors. The resistance range includes E24 and E96 decade values from 10 ohm to 2.2Mohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
  • EIA 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available
  • Small size, low weight resistors
  • Automotive grade AEC-Q200 compliant
  • Maximum power rating of 1W
  • Available in ±0.5% and ±1% tolerance
  • Temperature coefficient (TCR) of ±50, ±100, ±200 and ±300ppm/°C
  • Available in -55°C to 125°C and -55°C to 155°C operating temperature ranges
  • Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B standards
  • Suitable for both reflow and flow soldering

Applications

Automotive; Industrial; Power Management; Consumer Electronics; Portable Devices

Manufacturer:Panasonic
Datasheet:Panasonic/ERJ-xG,14,12(Z),1T.pdf
