Description

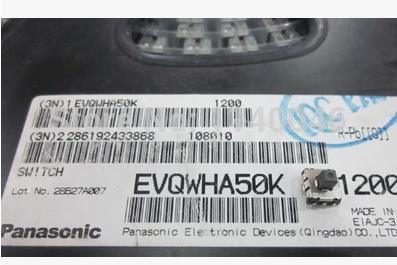

PANASONIC EVQWHA50K EVQ-WH Series Multifunction Micro Stick Switch
PCN Obsolescence/ EOL EVQ-WH Series 10/Apr/2013
Category Switches
Family Navigation Switches, Joystick
Series EVQWH
Type Navigation Switch, 2 – Axis
Actuator Type Pushbutton
Switch Function 4-Way Directional, Center Select
Output Digital (Mechanical Switch)
Current Rating 20mA (DC)
Voltage Rating – DC 15V
Mounting Type Surface Mount
Termination Style J Lead
Operating Temperature -20°C ~ 70°C
Mechanical Life 300,000 Cycles
Electrical Life 300,000 Cycles
Operating Force 140/270gf
Other Names EVQ-WHA50KCT
Manufacturer:Panasonic
Datasheet:Panasonic/EVQ-WHA50K.pdf
