Description

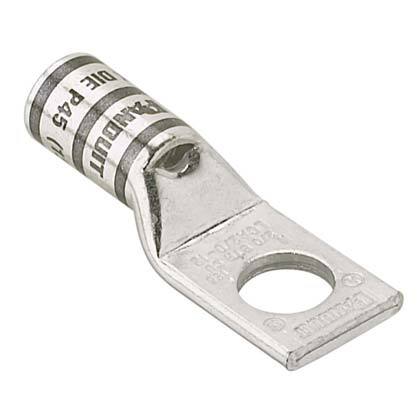

PANDUIT LCA6-10-L 450406
Std. Pkg. Qty. 50
Conductor Material Copper
Product Type Tin-Plated Copper Compression Connectors – Lugs
Barrel Type Standard Barrel Length with Inspection Window
Corona Relief Taper No
Tongue Angle Straight
Tongue Type Standard
Code Conductor Size #6 AWG Code
Stud Hole Size In. (mm) #10 (4.8)
Barrel Length In. (mm) 0.81 (20.6)
Length In (mm) 1.52 (38.6)
Tongue Thickness In. (mm) 0.09 (2.3)
Tongue Width In. (mm) 0.45 (11.4)
Panduit Color Code Blue
Panduit Die Index No. P24
Wire Strip Length In. (mm) 7/8 (22.2)
Burndy Die Index No. 7
T&B Die Index No. 24
American Bureau Shipping Approved Yes
CSA Certified C22.2 No. 65-13
Tested by Telcordia-Meets NEBS Level 3 Yes
Tin-Plating Meets ASTM B545-97, Class C 320µ in (8µ m)
UL Listed 486A-486B File #E52164
UL and CSA Temperature Rating 90°
UL and CSA Voltage Rating 35kV
Part Number Series LCA
Technical Information Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Part Features tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3
RoHS Compliancy Status Compliant
Min. Order Qty. 1.0000
Manufacturer Part Number: LCA610L
Manufacturer: Panduit
