Description

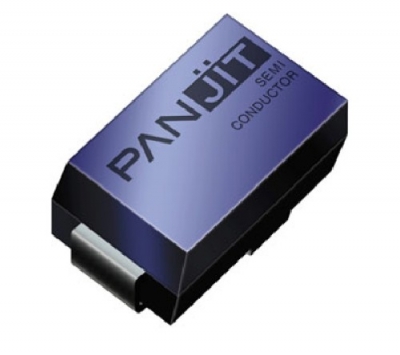

Panjit PJSD05TS ESD Suppressor TVS Diodes 25KV 2-Pin SOD-523 T/R, Single Line TVS Diode For ESD Protection Portable Electronics
Type TVS
Pin Count 2
Direction Type Uni-Directional
Maximum Clamping Voltage 9 V
Number of Elements per Chip 1
ESD Protection Voltage 25 kV
Maximum Working Voltage 5 V
Maximum Leakage Current 5 uA
Minimum Operating Temperature -50 °C
Maximum Operating Temperature 150 °C
Mounting Surface Mount
Category ESD Suppressors
Manufacturer Panjit
FEATURES
• 120 Watts peak pules power( tp=8/20μs)
• Small package for use in portable electronics
• Suitable replacement for MLV’S in ESD protection applications
• Low clamping voltage and leakage current
•Green molding compound as per IEC61249 Std. . (Halogen Free)
Manufacturer:Panjit
Datasheet:PJSD05TS.pdf
