Description
PBM-12Z12-FB-R1-R12-A6-S CANAL COMPONENTS PUSH BUTTON SWITCH 2A 250VAC RoHS
- 3A 250VAC
- SPST OFF-(ON), OFF-ON
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 1,000VAC for 1 minute
- Mechanical life: 500,000 cycles
- Electrical life: 100,000 cycles
- IP67 protection level
- Non-illuminated, spot & power marking illuminated
- M12 bushing, screw mounting
- Switch actuator / body material: Plastic
- Solder, screw terminals
- Distinctive Knob Color for Easy Identification

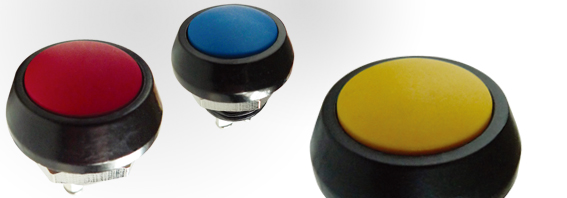

PB-12 Series
IP67 All Plastic Round Mini Push Button Switches, Install by nut-tightening or snapin
Manufacturer:Canal
Datasheet:PBM-12Z12-FB.pdf
